Krantz develops, designs, manufactures and markets air ducting, heating and cooling systems for ceiling and façade installation as well as cleanroom systems. We also produce filter and shut-off systems and are experts in exhaust air purification. With us, you also have a specialist at your side in the field of plant construction and with our “Ventilation of Nuclear Facilities” service.

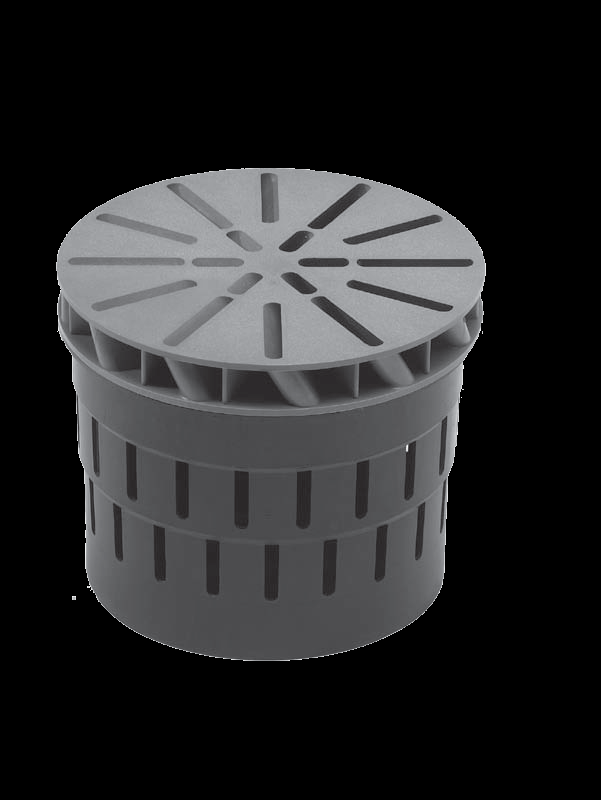

Krantz - Adjustable-floor-outlet-BA-V-DN-150
The adjustable floor outlet is a further development of the tried
and tested floor twist outlet for commercial rooms from Krantz.
A built-in adjustment device enables it to be used as a floor twist
outlet with high-turbulence vertical flow or as a floor displacement
outlet with low-turbulence, circular, horizontal supply air dispersion.
Patent rights have been issued.

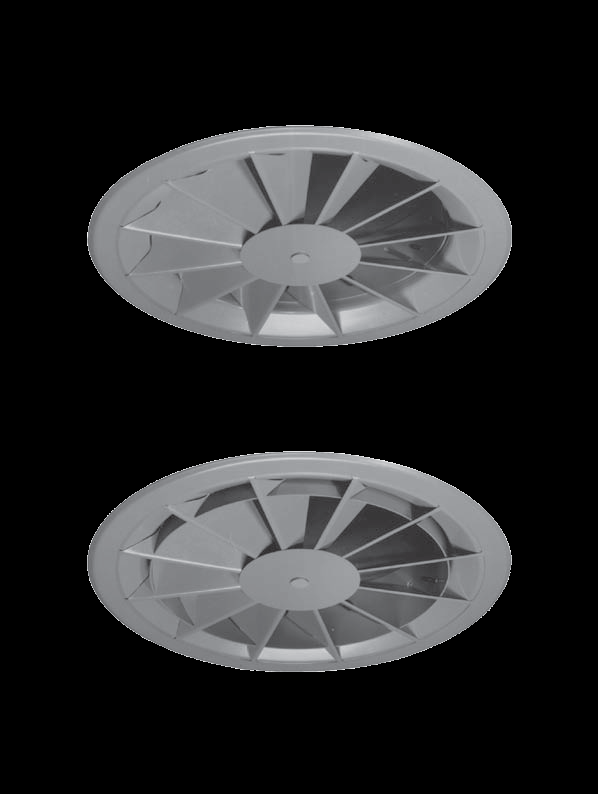

Krantz - Adjustable-Radial-Outlet-RA-V
The adjustable radial outlet generates turbulent mixing air flow and
is well suited for indoor spaces with no significant pollutant loads
as well as for large discharge heights. It can be installed flush with
the ceiling or free-hanging.

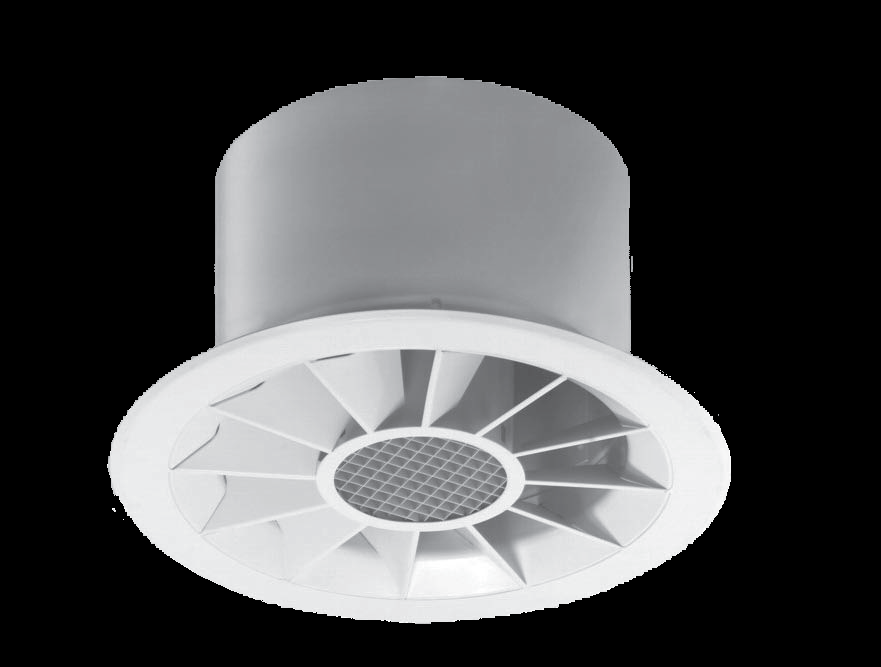

Krantz - Adjustable-Radial-Outlet-with-Core-Tube-RA
The adjustable radial outlet generates turbulent mixing air flow and
is well suited for indoor spaces with no significant pollutant loads
as well as for large discharge heights. It can be installed flush with
the ceiling or free-hanging.

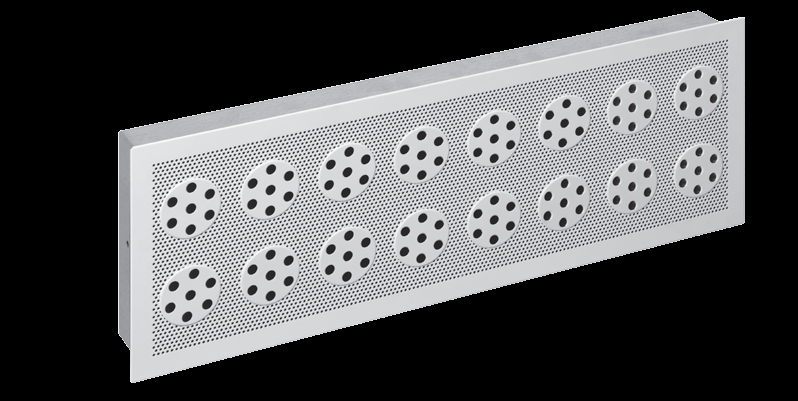

Krantz - Broad-multiplex-outlet-BF-V
The broad multiplex outlet is designed to ensure draught-free air
supply even at high air flow rates. The high level of thermal comfort
with high induction effect is achieved by discharging the supply air
simultaneously through nozzle discs and through the outlet perforations
(so-called hybrid ventilation). The high-momentum air jets
discharged through the nozzle discs induce the low-momentum
air stream discharged through the surrounding outlet perforations,
thus the percentage of fresh air in the occupied area is high, and
so is the air quality. This is what makes all the difference to ordinary
sidewall air outlets and air grilles.

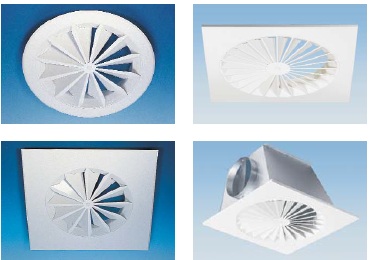

Krantz - ceiling-air-outlets
The air outlet has fixed, non-adjustable twist
vanes and a curved exit. It generates twisted
high-turbulence air jets that are subject to
the Coanda effect owing to the curved exit,
i.e. the supply air jets slide along the outlet
exit and enter the room with a radial, horizontal
flow.

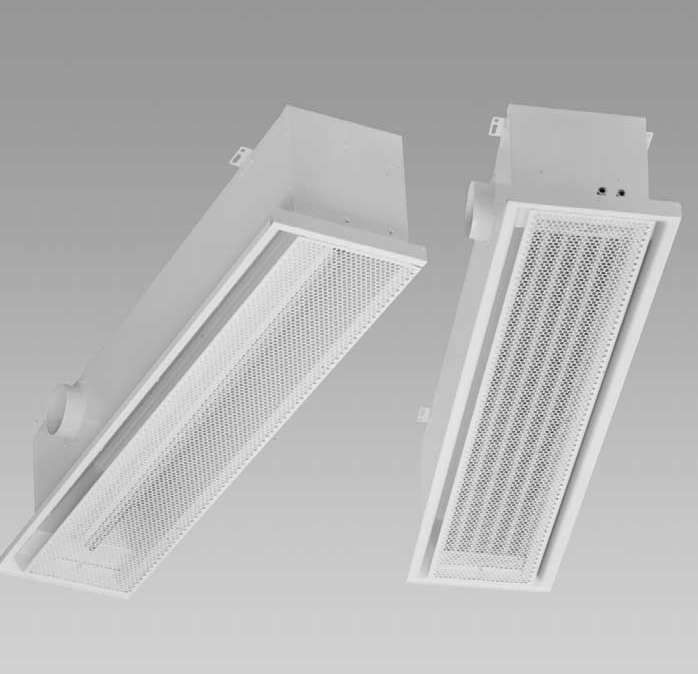

Krantz - CCBC - Chilled-beam-DK-LIGZ-with-ventilation-function-two-sided-discharge
Along with large-surface cooling ceilings, KRANTZ
KOMPONENTEN provides passive and active chilled
beams for indoor air cooling. While the passive DK-F
type operates without supply air (primary air) simply as
a recirculating air cooler using gravity, the DK-L has an
additional ventilation function through primary air connection.
This way the requisite outdoor air flow rate for
the occupants can be supplied to the room. KRANTZ
KOMPONTEN supplies the following types of active
chilled beam
– One-sided discharge, best for placement along the
facade or wall, type DK-LIG/E.
– Two-sided discharge for placement at a distance to
the wall or in the centre of the room, type DK-LIG/Z.
Both types can also be used for heating.
Krantz - CCBC - Multifunction-exposed-ceiling-AVACS
The multifunction exposed ceiling AVACS is designed for use with
plane metal acoustic panels from various brands to make cooling
or heating panels. The large-surface permanent contact between
the cooling element and the ceiling panel is preferably done by
bonding. AVACS stands for Air Ventilation And Cooling System.
The AVACS combines the following functions: cooling, heating, indoor
air circulation and sound absorption, which are performed in
compliance with thermal comfort criteria.

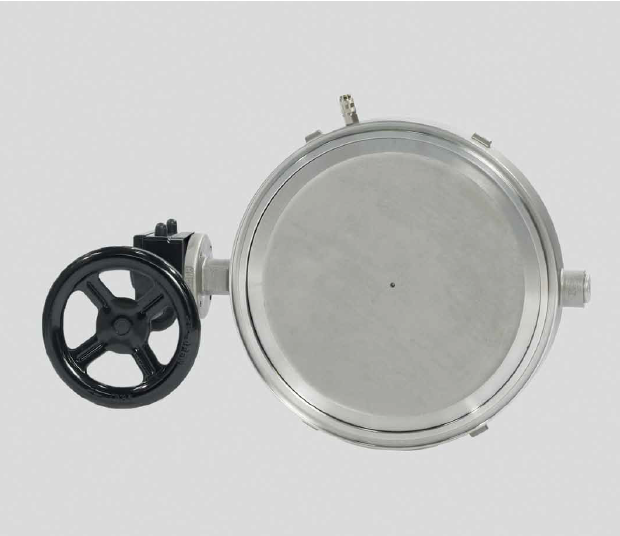

Krantz - HFS - Circular-Bubble-Tight
Butterfly valve with robust damper housing
made of stainless steel, material 1.4301
(AISI/SAE 304), in gastight design according
to the tightness requirements of DIN 25 496,
table 3.
Krantz - HFS - Rectangular-Damper
Components such as damper systems used
in ventilation systems for sensitive areas,
like the chemical, pharmaceutical and the
nuclear industry have to fulfill high leak
tightness requirements.
Krantz - HFS - SCF-hightec-Bag-in-Bag-Out
Ventilation systems in areas like laboratories, chemical,
pharmaceutical or nuclear industry have to separate toxic
particles and pathogen agents in order to save the environment,
the production or the health of the personnel.
