Chilled beams are sensible cooling and heating devices that reduce airflow requirements for a space by using
the waterside design in addition to the primary air. Displacement ventilation provides an energy efficient way
of improving indoor air quality, increasing thermal comfort within spaces, and allowing for a higher ventilation

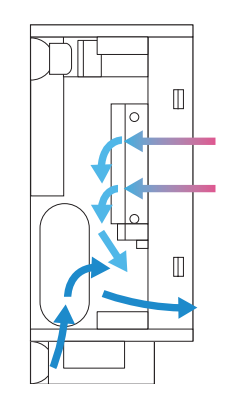

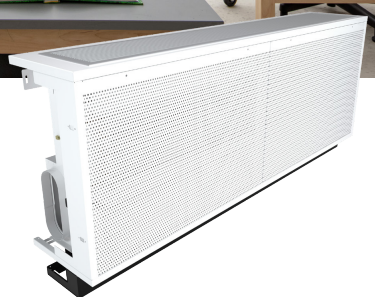

effectiveness. The Cabinet Displacement Chilled Beam (ACBC) combines the benefits of these two technologies
to provide an energy efficient HVAC system and improved comfort benefits.
The ACBC is designed for high occupancy applications such as classrooms in primary, secondary, and higher
education buildings. The ACBC supplies low velocity fresh air at ground level which allows for stratification to
occur in the occupied space.

The Linear Active Chilled Beam (ACBL1212) is Price Industries’ most versatile beam. With the option of either
1-way or 2-way throw patterns, the ACBL12 can be utilized in room centers, perimeters or both to provide
optimum thermal comfort. The ACBL12 is designed to provide a high cooling and heating output by conditioning
the room air induced through the beams hydronic coil while simultaneously supplying fresh, conditioned air to
the occupied area.

The Modular Active Chilled Beam (ACBM) provides high transfer efficiencies, allowing the designer to maximize
the beam capacity while minimizing the primary airflow rate. The ACBM induces room air through the heat
exchanger, mixes it with supply air, and delivers the combined air streams into the occupied zone via slots along
the perimeter of the beam. The low profile design of the ACBM allows for reduced ceiling plenum heights or
minimal clearance requirements for exposed installations. The ACBM is a perfect application for small enclosed
spaces. The 4-way discharge of the ACBM offers a comfort advantage over similarly sized linear active beams
due to the reduction in throw. The ACBM provides a more traditional aesthetic while also offering an efficient,
comfortable, and lower maintenance alternative to more traditional systems.

The Linear Induction Unit (LIU) is Price Industries’ solution to high latent applications. This induction unit can be
utilized in room centers with its 2 way throw pattern to provide optimum thermal comfort. The LIU is designed to
provide cooling and heating output by conditioning the room air induced through the beams hydronic coil while
simultaneously supplying fresh, conditioned air to the occupied area. The incorporation of a condensate drain
pan allows for higher latent and colder water applications.

The Linear Passive Chilled Beam (PCBL) is a sensible cooling only product that does not require airflow to treat
the sensible load in a space. The cooling effect is created by natural convection through the use of a cooling coil
in the unit. The warm return air rises and contacts the cooling coil which creates a downward airflow that draws
the return air across the cooling coil and provides cooling capacity.
The compact design of the PCBL provides for short ceiling plenum heights or minimal clearance requirements for
exposed installations. It does not require external air, but should be applied in conjunction with other air delivery
systems such as active beams, underfloor air distribution, displacement ventilation, or mixing ventilation , to deal
with space ventilation requirements and/or space latent loads. When combined with a displacement ventilation
system, the passive chilled beam will greatly improve the system transfer effectiveness.

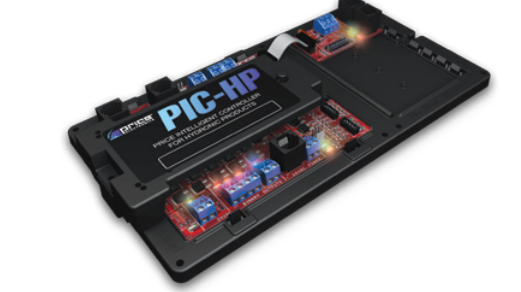

The PIC-HP is a standalone or networkable, fully digital and programmable controller. This control solution is ideal for managing the sequences of Price radiant heating and cooling products. The PIC-HP is an advanced and configurable proportional integral (PI) controller and allows for exceptional user comfort and energy efficiency. It is designed specifically to manage the control requirements of radiant systems. The PIC-HP is designed with a modular architecture and includes BACnet networking as standard. This allows flexibility to the customer by providing both the “core” controller as well as powerful control and communication options with the use of the expansion modules.

The PRTU-IP-RTR links the Local Area Network (LAN) and Wide Area Network (WAN), enabling communication and access to the PRTU-BAC-RTR and Web Server on a local network. Router configuration is available via a web browser for PAT, NAT and build-in stateful firewall setup. Port forwarding is also available, enabling LAN-side devices to be accessed remotely online.

The Retrofit Induction Unit (RIU) is designed as a direct replacement for older, legacy induction units no longer
available through the previous manufacturer. The RIU can be selected to operate at lower static pressures to
provide the same capacity as the existing system which can result in significant fan energy savings or it can be
selected to be used with the existing system for a one-to-one swap.
It can be installed within existing cabinetry or provided with customized cabinets to update the look of the space.
The legacy induction units are typically installed in single zone applications along the perimeter and can be found
in facilities such as hospitals and healthcare, universities, condominiums, and commercial buildings.

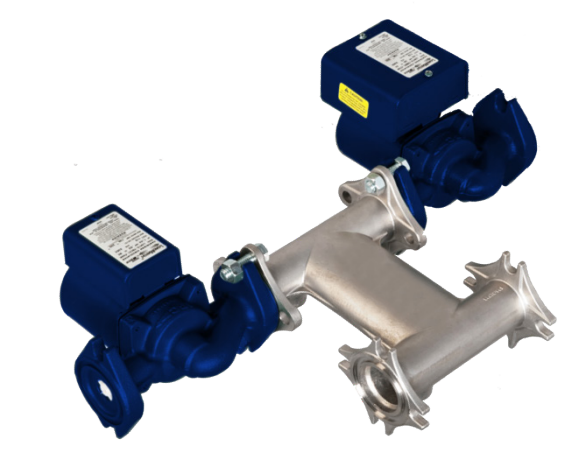

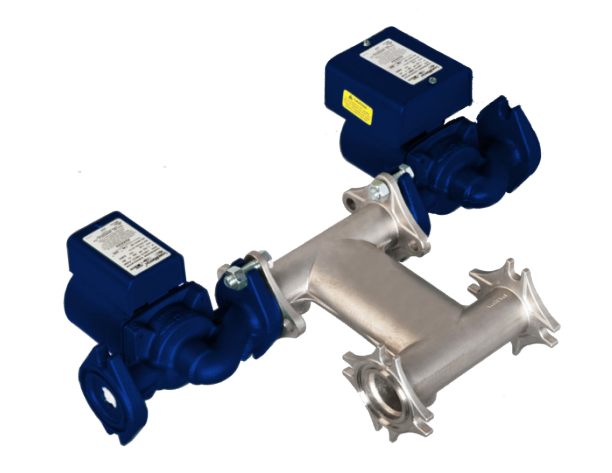

The TRM is an injection mixing module specifically designed for hydronic systems. It improves system controllability
by enabling dynamic zone level EWT adjustment. Typically installed with modern Chilled Beams and radiant
systems, this module helps minimize piping, GPM, and pump HP required to condition a building. At the same
time, allowing the use of sensible only hydronic systems in spaces with high dew point fluctuation (ex. operable
windows).

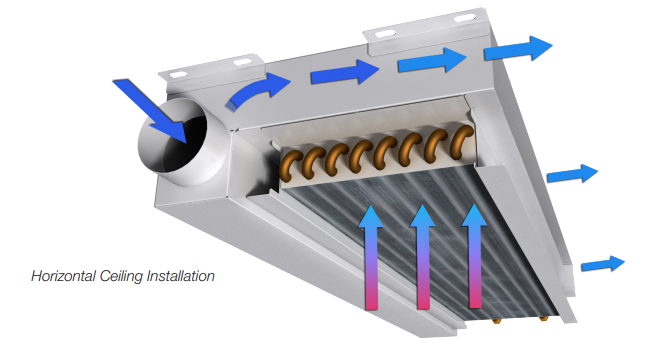

The Recessed Active Chilled Beam (ACBR) can be used in a vertical or horizontal configuration. The induced
airflow can either be drawn from the room side or from the plenum space. The primary air and induced air are
mixed together in the beam and discharged vertically or horizontally into the space to provide conditioned and
comfortable air.
When used in a horizontal application, the active chilled beam has a low profile and is an ideal product for spaces
with low ceiling height, curtain wall construction, or bulkheads, making it a great alternative to fan coils. Ideal
applications include perimeters, office spaces, dormitories, and hotel rooms.
When used in a vertical application, the narrow profile of the active chilled beam makes the unit ideal for installations
in narrow, tight spaces along perimeters.

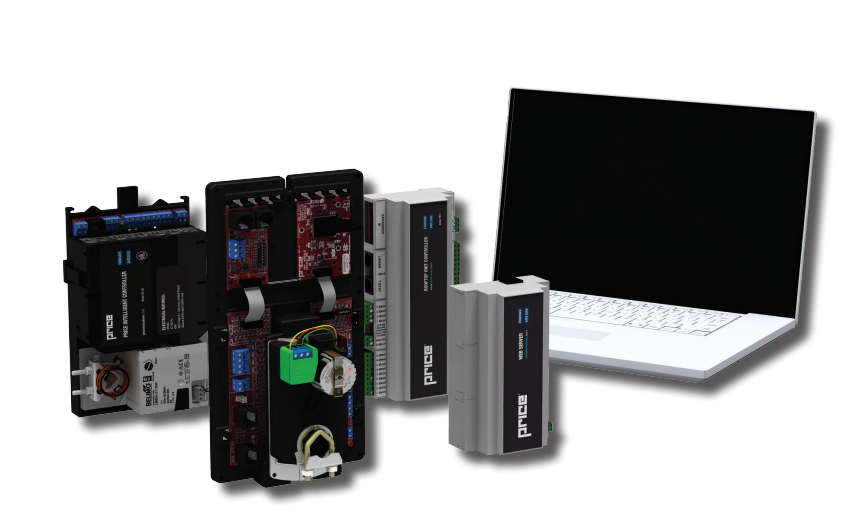

BACnet MS/TP networks can be complex and contain devices from multiple manufacturers, which can make for difficult troubleshooting. The BACnet Commissioning Tool (BCT) helps troubleshoot BACnet networks when communication between devices is not sufficient. The BCT scans the network and determines which devices are active, which devices are responding slower than others and which devices are missing on a network segment altogether. Troubleshooting becomes quick and easy with the intuitive BCT software interface, available for free download at www.priceindustries.com.

The PRTU-BAC-RTR enables the transmission of information between BACnet networks such as BACnet/IP, BACnet Ethernet and
BACnet MS/TP. Devices on these networks are then discoverable on a front end system like the Price Web Server or on a BAS System, and are configurable online through any web browser.

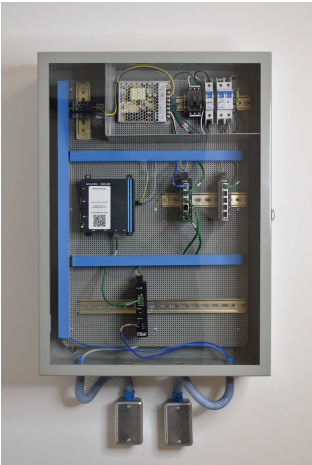

The Disio Cloud is a complete BACnet Building Management (BMS) solution for small to medium sized networks. The Disio Cloud hosts all web pages containing graphics and BACnet points reported by the system controllers. The Disio Cloud is accessed from any computer or smart device (tablet or mobile phone) on the local network using a web browser. Remote access is possible from across the globe through www.disio.io/ Contained within the Cloud are pre-loaded templates with graphics and points lists for the popular Price controls. Changes to the graphics or the creation of new custom graphics are supported from within the web interface. Disio Cloud can be ordered as DISIO-CLOUD, which contains all of the parts required to network all of the controls, connect them to the Disio Cloud, and then interface them to the building LAN system at a single point. When ordered with the factory mounted enclosure, all controls will come pre-wired and ready for field install.

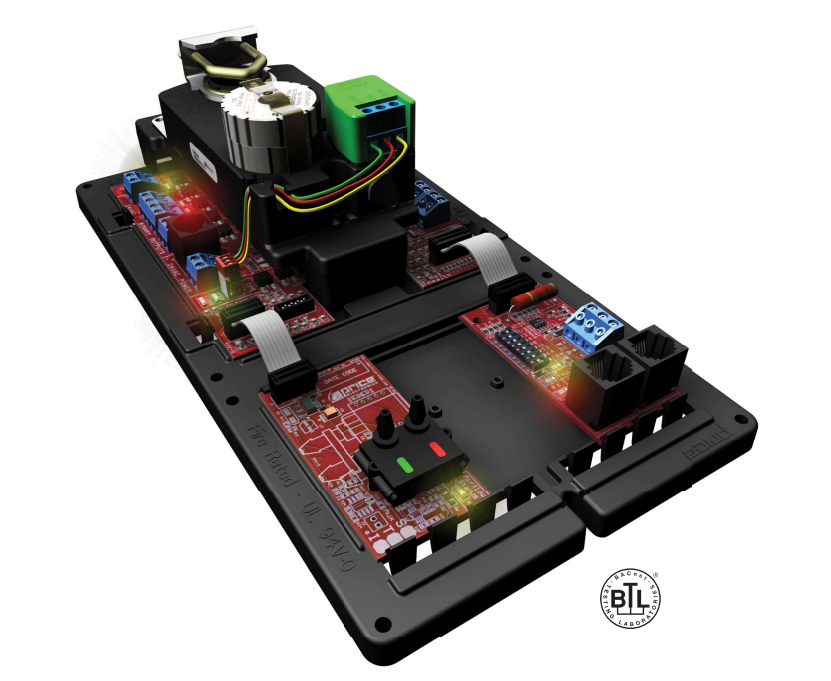

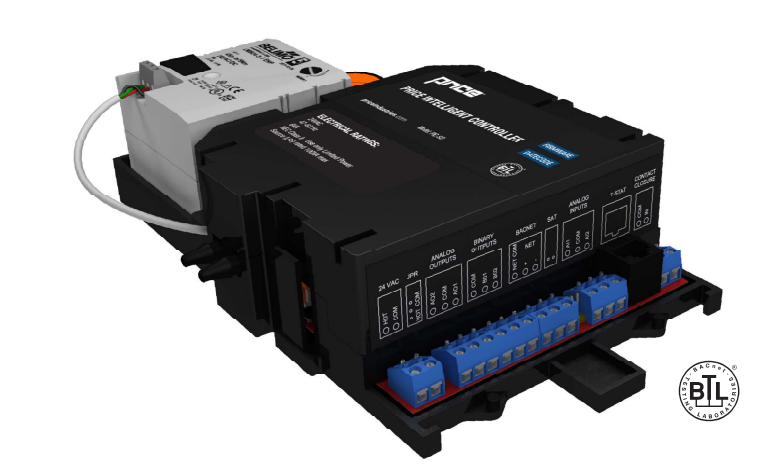

The Price Intelligent Controller (PIC) was developed as a full blown DDC controller. Its versatility offers control sequences for single ducts, fan powered boxes, dual ducts, chilled beams, fan coils and blower coils.
The PIC controller comes pre-programmed with a specified sequence, resulting in no field programming required. With its plug & play capabilities, the PIC controller is quick and easy for contractors to install, and daisy-chain into a BACnet MS/TP network.
The PIC is available with several thermostat options allowing the designer to match the specific needs of the customer. All Price thermostats, except the wireless model, have an RJ45 jack, allowing plug & play connection with the supplied NETC35 cable.

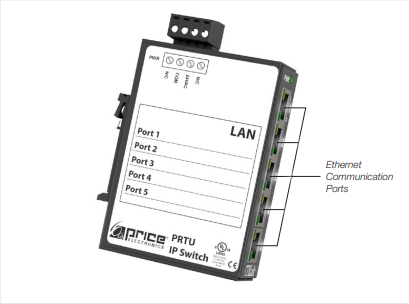

The PRTU-IP-SWITCH is a plug and-play Ethernet switch used to expand available connections for BACnet routers and additional network devices. All five ports automatically configure their data rate and accommodate a straight through or crossover cable using the Auto-MDIX protocol.

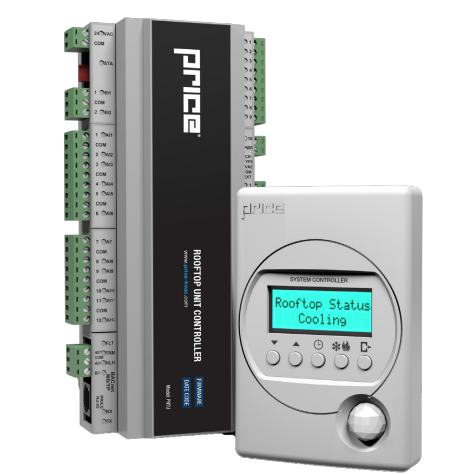

Designed to work with any constant volume or variable volume packaged rooftop in small to medium sized buildings (50,000 sq.ft.) with 2-30 ton applications, the PRTU is an advanced proportional integral (PI) DDC controller that offers intelligent control for your building. When networked with a PIC or Prodigy unit using BACnet MS/TP protocol, the PRTU system can utilize a networked strategy to intelligently control your building. Determining the load in each zone, the PRTU will turn on stages of heating or cooling based on the overall demand from the zones. Price recommends a maximum of 30 zones per PRTU controller. Networked polling strategies are available within the PRTU controller and can be adjusted onsite as required. If a Stand-Alone strategy is required, the PRTU can operate on its own without any influence from the zones.

Typically BACnet controllers are networked using the BACnet MS/TP protocol. BACnet MS/TP is based on a physical RS-485 network. Baud rates officially support by ASHRAE 135 are 9600, 19200, 38400, 76800 (and 115,000 is slowly being adopted). BACnet MS/TP offers a simple low cost way to connect controllers together and allows them to share data. MS/TP is not intended for very high bandwidth, but offers advantages in being very robust, noise immune and low cost.

The Price ECM speed controller is designed to interface with a highefficiency Electronically Commutated Motor. This low voltage speed controller offers either full manual push-button control, automatic control (modulation signal from a terminal unit controller) or Building Automation System (BAS) control of the Electronically Commutated Motor. Switching between the modes is easy: just apply the BAS signal and the controller will automatically switch over from manual (dial) mode
to BAS mode.

The Disio Display thermostat is designed to be used as a single thermostat for several applications. The Disio Display thermostat was designed as a fancoil controller/thermostat solution and can be configured for a number of 2 pipe and 4 pipe fancoil sequences, however due to the number and flexibility of universal inputs and outputs can also be used for pressure dependent terminal unit applications or control of standalone heaters (baseboard, unit heater, or radiant panels).

The Disio Display thermostat works as a standalone control thermostat. Disio Display thermostats ordered with optional BACnet can be connected to a BACnet network through its native BACnet MS/TP connection for remote control and monitoring. A USB-C jack on the bottom of the controller allows connection to a Windows based laptop for easy onsite configuration and monitoring using the free Disio Setup software. Download the Disio Setup software for Windows operating systems at disio.io/setup/.

The Price ECM speed controller is designed to interface with a high-efficiency Electronically Commutated Motor. This low voltage speed controller offers either full manual dial control, automatic control (modulation signal from a terminal unit controller) or Building Automation System (BAS) control of the Electronically Commutated Motor. Switching between the modes is easy: just apply the BAS signal and the controller will automatically switch over from manual (dial) mode to BAS mode.

The Price Controlling Thermostat is a fully digital zone controller for pressure dependent air distribution zones. It supports binary (24 VAC) outputs for the damper and reheat. It also features dual 0-10V outputs for heating and cooling. (Typically used for analog valves, dampers, BAS system interface, etc.)

The PIC-SD is a powerful yet cost effective VAV zone controller for single duct terminals. The PIC-SD controller comes pre-programmed with a specified sequence, resulting in no field programming required. With its plug & play thermostat connection and smaller footprint, this controller is great for retrofits and stand-alone applications. The PIC-SD is available with several thermostat options allowing the designer to match the specific needs of the customer. All Price thermostats, except the wireless model, come with an RJ45 jack allowing for plug & play connection with the supplied NETC35 cable.

El controlador de zona PIC-SD llega a terreno completamente programado y configurado para una caja VAV específica -- el tamaño de la entrada, los caudales de aire y el factor K ya han sido ingresados en la fábrica. Si es necesario realizar cualquier cambio, usted puede utilizar el cable de interfaz y el software Linkersoft2 para hacer cambios de manera fácil después de la instalación. El cable de interfaz se conecta al puerto de servicio de cualquier modelo de termostato, lo que permite al instalador ajustar de manera virtual cualquier configuración en el controlador PIC-SD. Esto le da al instalador la capacidad de acceder a todas estas funciones sin tener que escalar al pleno del cielo. Todos los pasos mencionados anteriormente también se pueden realizar utilizando un termostato LCD.

The Price Web Server is a complete BACnet front-end solution for small to medium sized networks. The Price Web Server hosts all web pages containing graphics and BACnet points reported by the system controllers. The Price Web Server is accessed from any computer or smart device (tablet or mobile phone) on the local network using a web browser. Remote access is possible from across the globe with the use of Port Forwarding on the computer network. Contained within the webserver are pre-loaded templates with graphics and points lists for the popular Price controls. Changes to the graphics or the creation of new custom graphics are supported from within the web interface. Price Web Server can be ordered as PRTU-Front-End, which contains all of the parts required to network all of the controls, connect them to the web server, and then interface them to the building LAN system at a single point.

The following items shall be verified by the commissioning technician on site. Ideally, the mechanical contractor or controls contractor should be present when the commissioning technician is on site verifying Price equipment.

Designed to work with any constant volume or variable volume packaged rooftop in small to medium sized buildings (50,000 sq.ft.) with 2-30 ton applications, the PRTU is an advanced proportional integral (PI) DDC controller that offers intelligent control for your building. When networked with a PIC or Prodigy unit using BACnet MS/TP protocol, the PRTU system can utilize a networked strategy to intelligently control your building. Determining the load in each zone, the PRTU will turn on stages of heating or cooling based on the overall demand from the zones. Price recommends a maximum of 30 zones per PRTU controller. Networked polling strategies are available within the PRTU controller and can be adjusted onsite as required. If a Stand-Alone strategy is required, the PRTU can operate on its own without any influence from the zones.

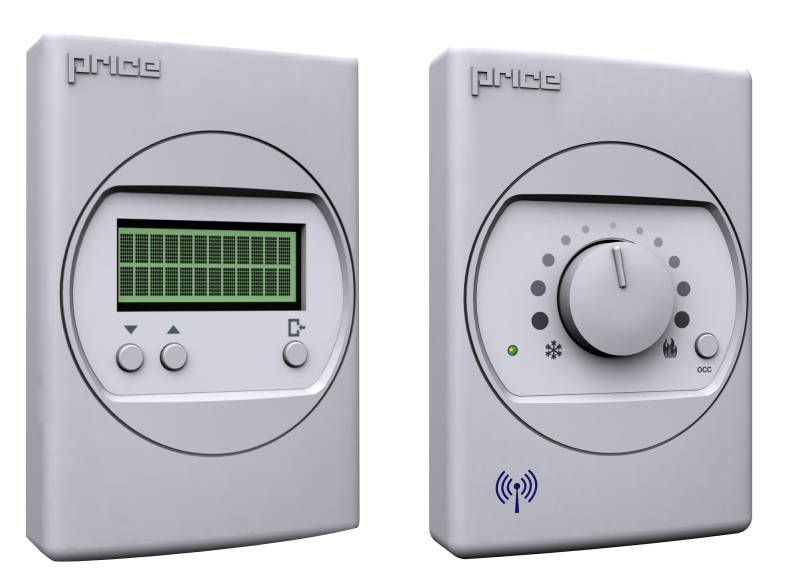

The Price Wireless Thermostat System provides both sensor inputs and a point of control for Price controllers.

Price’s Silicon Controlled Rectifier (SCR) controller acts like an electronic switch that turns on and off large amounts of power to the load (heater). It provides proportional modulation of the heater’s full operating range, ensuring reliable, efficient and silent operation. This controller uses a zero crossswitching feature that allows for a soft start of the electronic load, eliminating power surges.

The SP300 uses multiple, strategically located pressure ports to accurately measure airflow even at low inlet velocities and non-uniform entry conditions. Unlike traditional velocity pressure sensors, the SP300 is able to overcome the effects of poor inlet conditions by averaging and amplifying pressure signals, ensuring accurate readings. The aerodynamic profile results in negligible pressure drop and noise contribution.

The SP300 uses multiple, strategically located pressure ports to accurately measure airflow even at low inlet velocities and non-uniform entry conditions. Unlike traditional velocity pressure sensors, the SP300 is able to overcome the effects of poor inlet conditions by averaging and amplifying pressure signals, ensuring accurate readings. The aerodynamic profile results in negligible pressure drop and noise contribution.

Price’s Universal Speed Controller (USC) provides variable speed control of permanent split capacitor (PSC) motors used in Price terminal units. The USC is a solid state device with an integral heat sink/mounting plate, making it an easy-to-install, long-life component

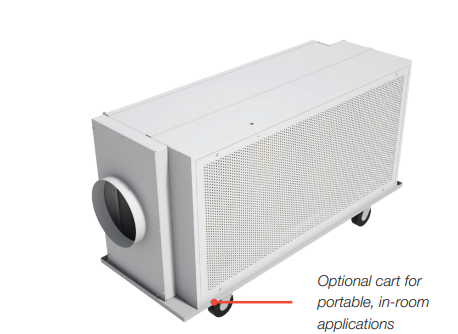

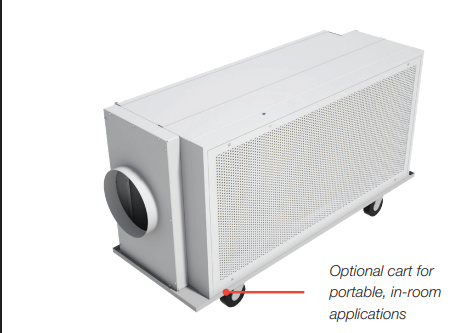

The Puraflo provides HEPA filtration and increased room air changes, effectively reducing the concentration of, and therefore the probability of exposure to, airborne pathogens1 and other contaminants. Ideal for use in a variety of commercial spaces including offices, classrooms and more; the Puraflo is quick and easy to install with no impact on the existing HVAC system. Derived from our industry leading line of Fan Filter Units (FFU) the Puraflo delivers cleanroom-grade HEPA filtration with high energy efficiency and low sound levels.

The all-aluminum AMDC provides a high volume of filtered airflow with a very high induction rate and horizontal air pattern. The high induction rate works to dilute contaminants by quickly mixing room and supply air. The horizontal air pattern helps to direct the contaminated room air toward low-level exhaust grilles where it is removed from the space.

Typically BACnet controllers are networked using the BACnet MS/TP protocol. BACnet MS/TP is based on a physical RS-485 network. Baud rates officially support by ASHRAE 135 are 9600, 19200, 38400, 76800 (and 115,000 is slowly being adopted). BACnet MS/TP offers a simple low cost way to connect controllers together and allows them to share data. MS/TP is not intended for very high bandwidth, but offers advantages in being very robust, noise immune and low cost.

The BACnet Flow Controller (BFC) is a DDC fan controller designed specifically for controlling flow through Fan Filter Units (FFU) with EC motor technology. The BFC controls an EC motor through a local setpoint which is adjustable using a push button interface on the BFC, by an analog BAS input voltage, or over BACnet.

Easy to implement, the FDM can replace or modify existing diffusers to provide MERV 13 or MERV 15 filtration in a matter of minutes. Implementing filtration at each diffuser effectively reduces the concentration of airborne particulate. Upgrading a typical overhead mixing system to include filters at each diffuser with the FDM requires very few changes to the overall HVAC system, keeping the cost of implementation low.

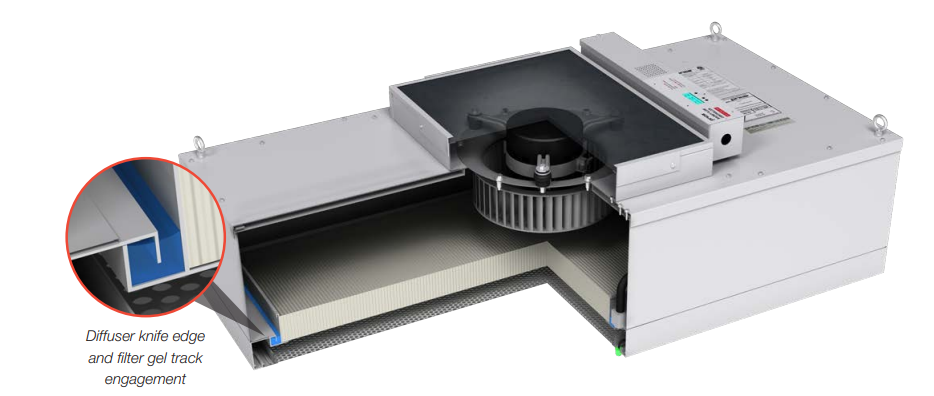

Price Fan Filter Units (FFU) are the most energy efficient line of fan filter units (fan filter modules) on the market today. Designed specifically for use in cleanrooms, pharmacies, pharmaceutical manufacturing facilities and laboratories, the FFU delivers high volumes of HEPA filtered airflow (for 99.99% removal of particulate) at low sound levels while reducing energy consumption by 15 to 50% versus comparable products.

Las unidades terminales de filtro con ventilador (FFU) son la línea de unidades terminales de filtro con ventilador (módulos de filtro con ventilador) más energéticamente eficientes que se encuentran hoy en el mercado. Diseñada específicamente para ser utilizada en ambientes asépticos, instalaciones y laboratorios farmacéuticos de fabricación, la FFU entrega volúmenes altos de aire filtrado HEPA (o ULPA) a niveles de sonido bajos reduciendo al mismo tiempo el consumo de energía entre un 15 y un 50% en comparación con productos similares.

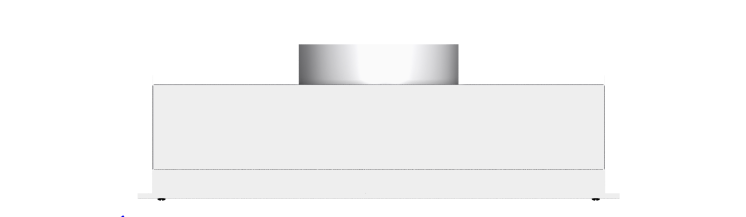

The Flush Face Radial Flow Diffuser (FRFD) is designed to maximize comfort while handling large volumes of air in confined spaces with low room air velocities. Typically mounted in the ceiling with a full radial air pattern, FRFDs produce a low initial face velocity and minimizes entrainment of room air

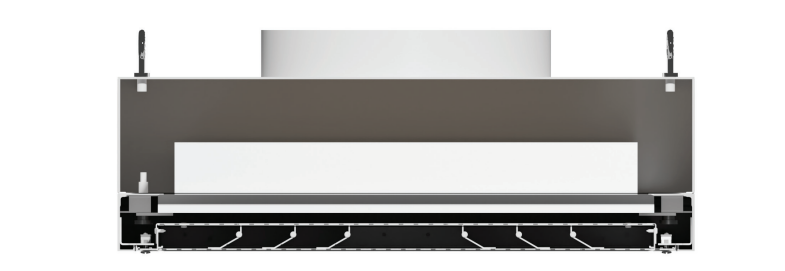

The Flush Face Radial Flow Diffuser with HEPA filter (FRFDC) is designed to maximize comfort while handling large volumes of filtered air in confined spaces at low room air velocities. Typically mounted in the ceiling with a full radial air pattern, FRFDCs produce a low initial face velocity and minimizes entrainment of room air

Price high efficiency replacement filters are available in two grades (HEPA and ULPA) to meet the cleanliness requirements of the space. Replacement filters for current and legacy diffusers are in stock and available to ship with short lead times.

The High Capacity Flush Face Diffuser (HCF) features all aluminum construction and provides a low velocity radial air pattern while maintaining the appearance of a conventional flush face perforated diffuser.

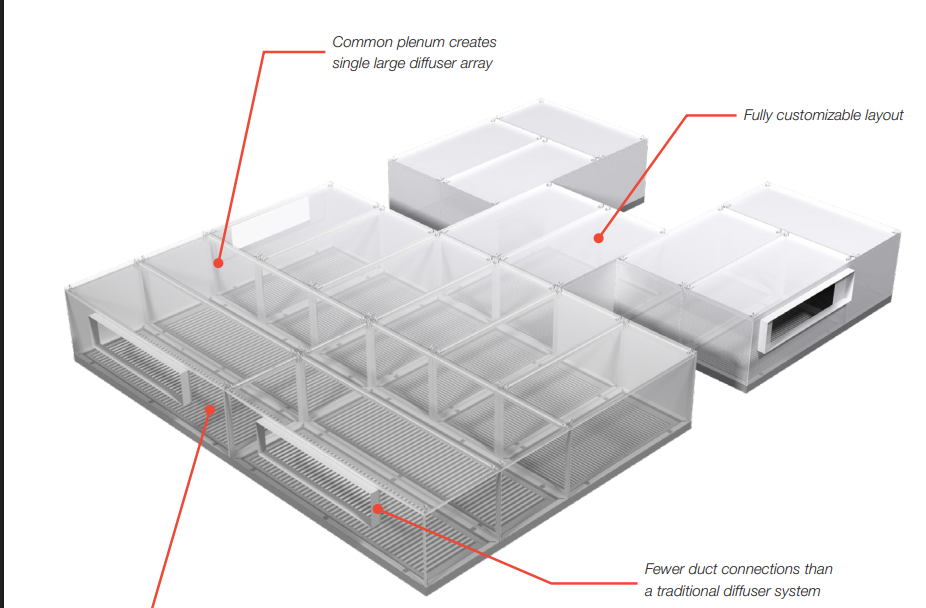

The Hospital Grade Common Plenum (HGP) is an integrated plenum system that uses multiple laminar flow diffusers connected by a common plenum to act as a single large diffuser array. The single large diffuser design results in a system with significantly fewer duct connections and equalized airflow across the laminar diffuser face. This system takes the place of individually ducted laminar flow diffusers installed in an engineered ceiling grid.

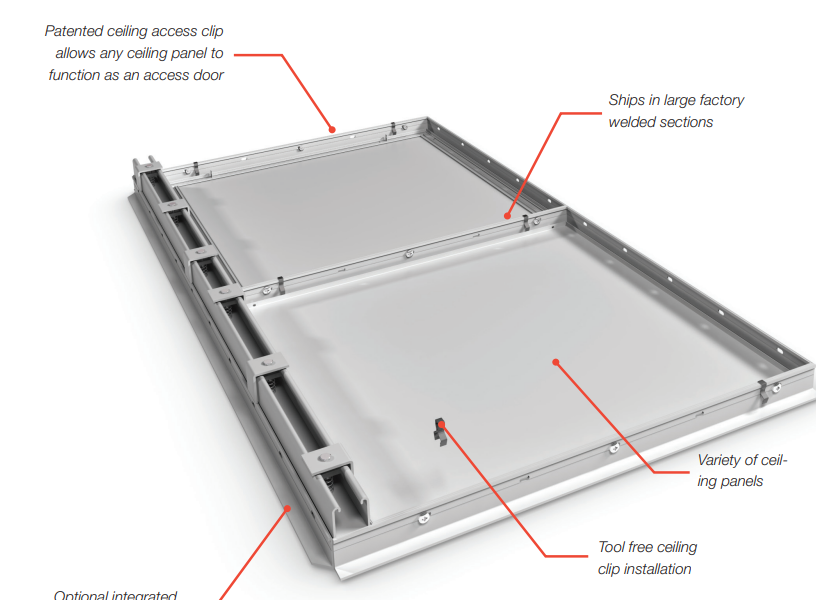

The Hospital Grade Welded Ceiling System (HGWC) is a heavy duty, extruded aluminum ceiling suspension system designed to support diffusers, in-fill panels and light fixtures in a variety of critical environments. The HGWC is fully customizable to match the demanding and often crowded modern hospital and cleanroom ceiling layouts, while ensuring compliance with ASHRAE 170, FGI Guidelines for Design and Construction of Health Care Facilities and USP 797/800. A continuous gasket prevents particulate migration between the ceiling plenum and occupied space, while the sterile white powder coat finish is formulated to resist deterioration from hospital-grade cleaners and disinfectants.

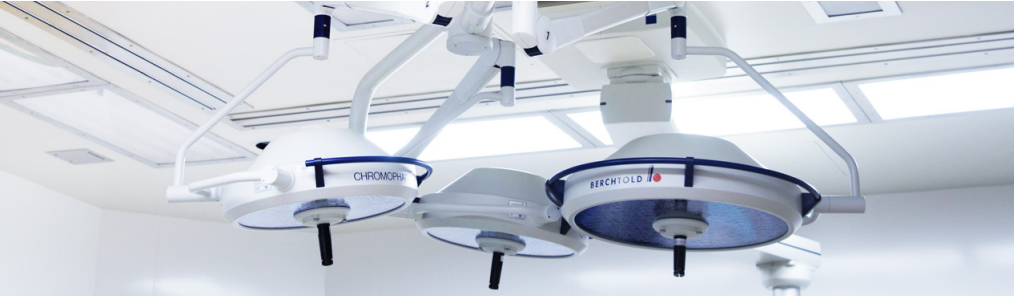

El sistema de cortina de aire del difusor para sala de operaciones de hospital (HORD) está diseñado específicamente para las necesidades exigentes de los ambientes de salas de operaciones. El sistema de cortina de aire HORD es completamente personalizable y se integra discretamente con los difusores de flujo laminar y las rejillas de extracción de nivel bajo para minimizar la mezcla del aire ambiente con el de suministro dentro del área de operación. Este sistema de cortina de aire personalizable se puede fabricar en aluminio o en acero inoxidable, con tapas de fijación mecánica o con soldadura continua para cumplir con los requerimientos del proyecto.

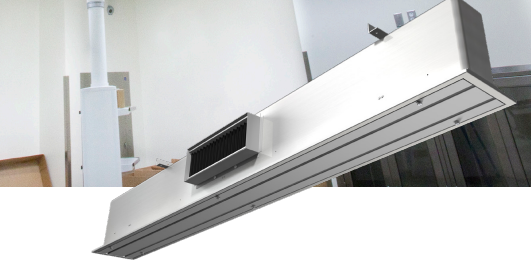

The Hospital Operating Room Diffuser (HORD) air curtain system is engineered specifically for the demanding needs of operating room environments. The HORD air curtain system is fully customizable and integrates seamlessly with laminar flow diffusers and low-level exhaust grilles to minimize mixing of room and supply air in the operating area. This customizable air curtain system can be fabricated with aluminum or stainless steel, with mechanically fastened or continuously welded end caps to suit project requirements.

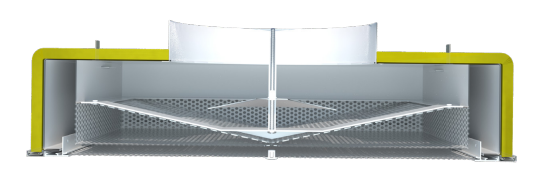

Los difusores de caudal laminar están diseñados para entregar un patrón de aire de velocidad baja uniforme y unidireccional. El caudal de aire tipo columna desplaza las partículas transportadas por el aire hacia abajo y las lleva lejos del área bajo el difusor. Disponible en una variedad de tamaños y tipos de construcción con muchas características estándares y opcionales, el LFD es el difusor de caudal laminar más versátil en el mercado.

Laminar flow diffusers are engineered to provide a uniform, unidirectional low velocity air pattern. The column-like airflow displaces airborne particulate down and away from the area below the diffuser. Available in a variety of sizes and construction types, with many standard and optional features, the LFD is the most versatile laminar flow diffuser on the market.

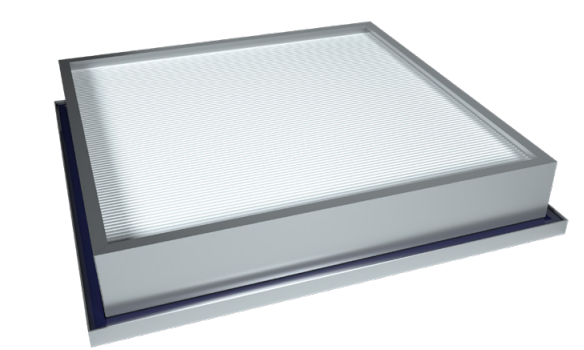

El difusor de flujo laminar con filtro HEPA ha sido diseñado para adaptarse a los requerimientos estrictos de las salas de operaciones modernas y otros espacios limpios. El LFDC es un medio para controlar la concentración de partículas dentro de una sala al suministrar caudal de aire laminar unidireccional con una baja velocidad inicial baja, entregando aire limpio al espacio sin ingreso de aire contaminado desde el espacio ocupado.

The Laminar Flow Diffuser with HEPA Filter has been designed to suit the stringent requirements of modern operating rooms and other clean spaces. The LFDC provides a means of controlling particle concentration within a room by providing unidirectional laminar airflow with low initial face velocity, supplying clean air to the space without entrainment of contaminated air from the occupied space

The Puraflo provides HEPA filtration and increased room air changes, effectively reducing the concentration of, and therefore the probability of exposure to, airborne pathogens1 and other contaminants. Ideal for use in a variety of commercial spaces including offices, classrooms and more; the Puraflo is quick and easy to install with no impact on the existing HVAC system. Derived from our industry leading line of Fan Filter Units (FFU) the Puraflo delivers cleanroom-grade HEPA filtration with high energy efficiency and low sound levels

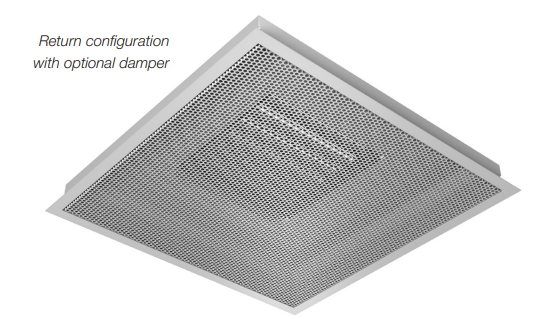

The unique design of the Perforated Laboratory Diffuser (PDA) features aluminum construction, ease of cleaning and an airtight backpan for ceiling integrity. Both supply and return models are available with matching perforated faces for a consistent look throughout the space.

The Puraflo provides HEPA filtration and increased room air changes, effectively reducing the concentration of, and therefore the probability of exposure to, airborne pathogens1 and other contaminants. Ideal for use in a variety of commercial spaces including offices, classrooms and more; the Puraflo is quick and easy to install with no impact on the existing HVAC system. Derived from our industry leading line of Fan Filter Units (FFU) the Puraflo delivers cleanroom-grade HEPA filtration with high energy efficiency and low sound levels

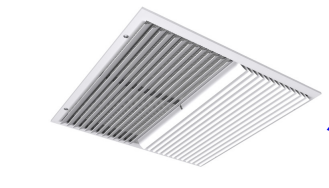

The Radial Adjustable Vane Diffuser (RAVD) is designed for high capacity airflow and produces a low velocity, multi-directional air pattern with field-adjustable vanes.

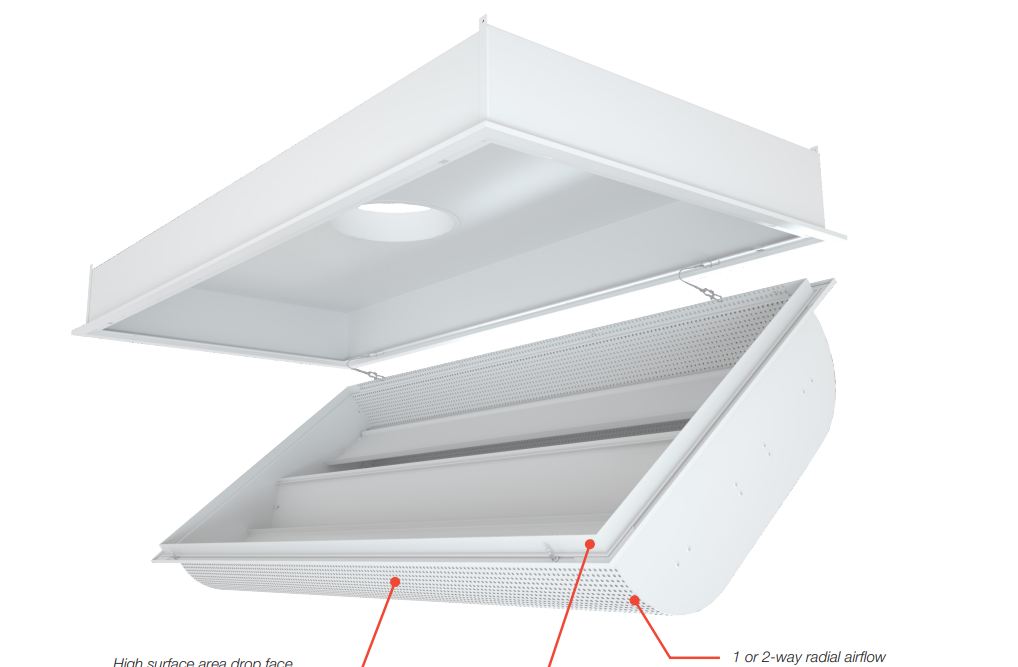

The Radial Flow Diffuser (RFD)’s patented construction is designed to handle large volumes of air with extremely short throws to minimize velocity in the occupied zone. Ideal for use in laboratories, the RFD is able to provide large volumes of make-up air, at low velocity, without adversely impacting containment at fume hoods.

The Radial Flow Diffuser with HEPA Filter (RFDC) is designed to deliver large volumes of filtered air with extremely short throws to minimize velocity in the occupied zone for critical applications. Ideal for use in laboratories, the RFDC is able to provide large volumes of make-up air without adversely impacting containment at fume hoods.

The Radial Vane Diffuser with HEPA Filter (RVDC) features radial slots that provide a high induction votex airflow that projects horizontally from the face of the diffuser. The resulting airflow provides rapid mixing of supply air with the room air and short throws, allowing large quantities of air to be introduced while maintaining thermal comfort. The rapid mixing of filtered supply air with the room air reduces particle concentration and is ideal for cleanrooms.

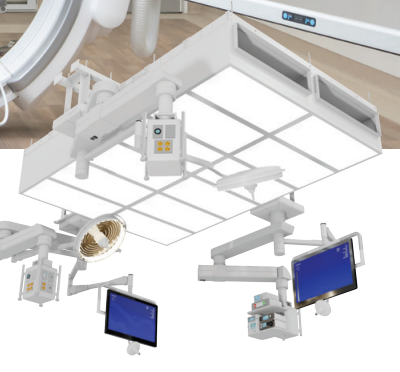

Price Ultrasuite® is a customizable air distribution and lighting solution specifically engineered for hospital operating rooms. High-output LED lighting combined with precision equalized laminar airflow eliminates the traditional “light ring”, opening valuable ceiling space for surgical equipment while optimizing particulate removal from the surgical zone. Conforming to all ASHRAE 170 requirements, the patented (pat. 10,401,049) Ultrasuite is the perfect combination of performance and aesthetics.

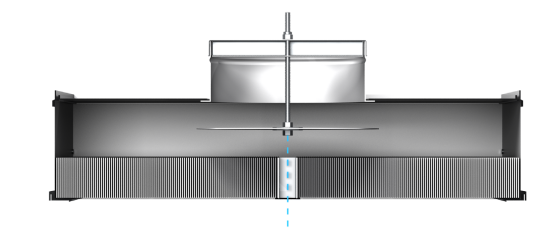

The low profile Laminar Flow Diffuser with Integrated HEPA Filter (LFDCX) is designed to suit the requirements of modern cleanrooms. The LFDCX provides a means of controlling particulate within a room by providing unidirectional laminar airflow with low initial face velocity, supplying filtered air to the space without entrainment of contaminated air from the occupied space. With a larger filter area, the LFDCX can achieve higher airflow capacities than a diffuser with a room-side replaceable filter.

Ultrasuite es una solución de distribución de aire e iluminación personalizable diseñada específicamente para salas de operaciones hospitalarias. La iluminación LED de alta capacidad combinada con el caudal de aire laminar ecualizado de precisión elimina el “anillo de luz”, abriendo espacio valioso en el cielo para el equipo de cirugía mientras que optimiza la eliminación de contaminantes desde la zona quirúrgica. Conforme a todos los requerimientos de ASHRAE 170, Ultrasuite es la combinación perfecta de estética y eficiencia.

The Critical Area Recirculation/Exhaust System (CARES) is a single 48 in. x 48 in. airflow device that combines the capabilities of a reverse flow Fan Filter Unit (FFU) with a one-way, flush face radial flow diffuser to manage the airflow for an entire patient room. Traditionally hospitals are built with very few negative pressure isolation rooms as these spaces are seldom used and are more expensive to build and operate than standard patient rooms. The patented (pat. 2023/0083631) CARES is a critical component of the isolation-ready patient room solution from Price and Antec Controls that allows hospitals to build one room that can be used for standard patient care or converted to a negative pressure isolation room at the touch of a button.

UL/ULC Approved For Use in Static Systems Where The Fan Shuts Down in the Event of a Fire. Requirements vary for each job. Please specify type of switch required. 15 amp. single pole double throw switch shown

All moving parts of the damper must be inspected and cycled at intervals not greater than every six months and in accordance with the latest edition of NFPA 90A, 92A, local codes and the actuator manufacturer. In addition, fuse links shall be removed and inspected for corrosion. Dry lubricants are recommended.

All moving parts of the damper must be inspected and cycled at intervals not greater than every six months and in accordance with the latest edition of NFPA 90A, 92A, local codes and the actuator manufacturer. In addition, fuse links shall be removed and inspected for corrosion. Dry lubricants are recommended.

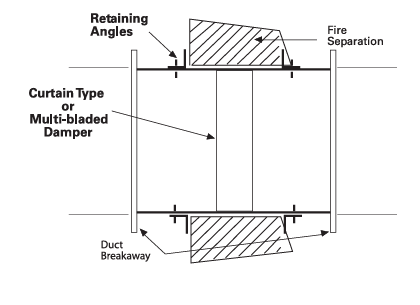

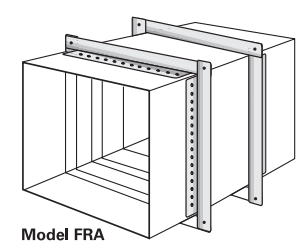

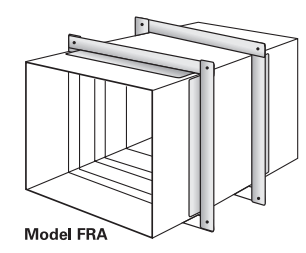

PRICE Model FRA Framed Retaining Angles may be used instead of the normal mounting angles being used at present. The model FRA retaining angles can be installed on PRICE curtain fire dampers, multi-bladed fire dampers and combination fire/smoke dampers with 11
/2 hr. or 3 hr. vertical or horizontal fire ratings. FRA angles are factory supplied two per damper.

PRICE Model FRA Framed Retaining Angles may be used instead of the normal mounting angles being used at present. The model FRA retaining angles can be installed on PRICE curtain fire dampers, multi-bladed fire dampers and combination fire/smoke dampers with 11 /2 hr. or 3 hr. vertical or horizontal fire ratings. FRA angles are factory supplied two per damper.

The following performance data and tables are developed from testing a 24” x 24” (610mm x 610mm) BDD-2X Backdraft Damper in accordance with AMCA Standard 500 using figure 5.5 (vertical mount, no ductwork upstream or downstream). The data represented has been corrected to represent standard air density, .075 lb/ft3. Testing to AMCA standard 500 is preformed under laboratory conditions. Actual field and environmental conditions may exist that will not allow the dampers to perform and operate in this manner. Horizontal mounted dampers may require high flows and create larger pressure drops. The BDD2X is an extruded aluminum frame and blade damper and it is recommended for velocities up to 2500 fpm.

* - Dampers are ordered by nominal duct size. Actual damper dimension will be
¼” (6) undersized on both height and width.
** - For exact opening sizes applicable see installation instructions.
*** - Damper sizing may vary slightly by model. See charts on submittal drawing
for each model.

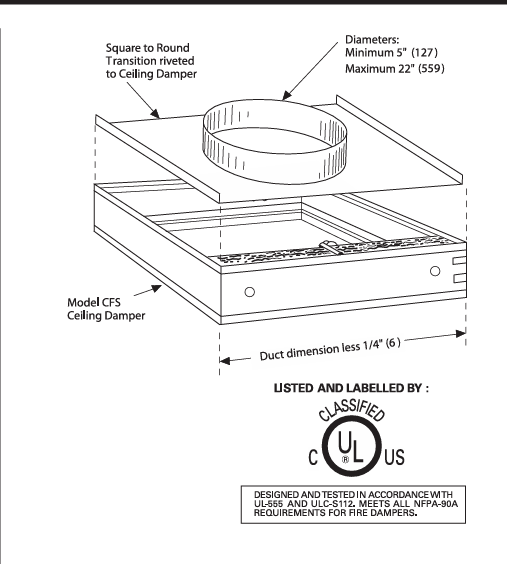

PRICE model CFS-2F ceiling radiation dampers have been tested, approved, and
classified by Underwriters’ Laboratories in an UL Fire Resistance Directory showing a penetration incorporating a hinge door type
damper. The low profile height of the CFS2F damper makes it ideal for small cavity areas. This damper may be subsitituted into any UL design which incorporates a hinge door type damper as outlined in the Fire Resistance Directory. With the approval of the local inspector, the damper provides the appropriate protection along with its low profile height is the perfect combination with a ceiling exhaust fan.

Notes:
* - Dampers are ordered by nominal duct size. Actual damper dimension will be
¼” (6) undersized on both height and width.
** - For exact opening sizes applicable see installation instructions.
*** - Damper sizing may vary slightly by model. See charts on submittal drawing
for each model.

Notes:
* - Dampers are ordered by nominal duct size. Actual damper dimension will be
¼” (6) undersized on both height and width.
** - For exact opening sizes applicable see installation instructions.
*** - Damper sizing may vary slightly by model. See charts on submittal drawing
for each model.

PRICE Model FRA Framed Retaining Angles may be used instead of the normal mounting angles being used at present. The model FRA retaining angles can be installed on PRICE curtain fire dampers, multi-bladed fire dampers and combination fire/smoke dampers with 11 /2 hr. or 3 hr. vertical or horizontal fire ratings. FRA angles are factory supplied two per damper.

All moving parts of the damper must be inspected and cycled at intervals not greater than every six months and in accordance with the latest edition of NFPA 90A, 92A, local codes and the actuator manufacturer. In addition, fuse links shall be removed and inspected for corrosion. Dry lubricants are recommended.

Dynamic Fire Damper, Horizontal and Vertical

Dynamic Fire Damper, Horizontal and Vertical

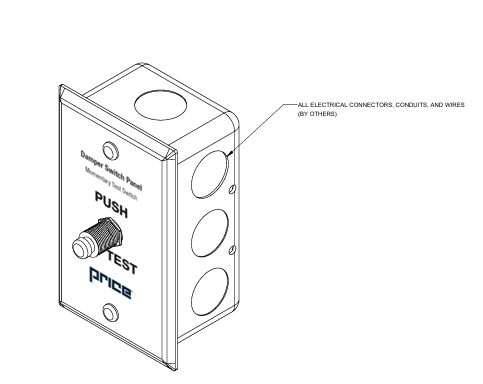

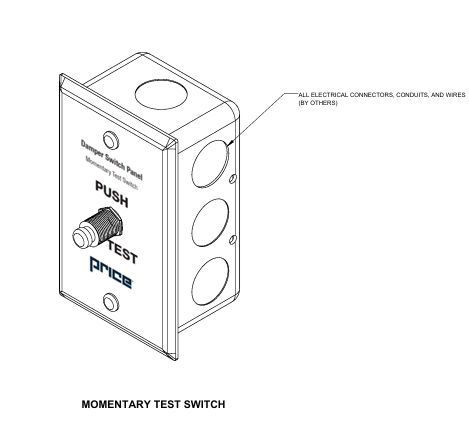

DAMPER SWITCH PANEL

Available with round, oval or square/ rectangular transitions; with or without collars. Round and oval transitions normally supplied with collars as standard construction. Square/rectangular collars supplied upon request.

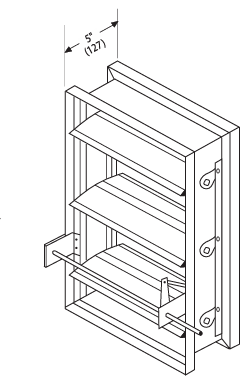

The FDD-MB-3V series Dynamic Fire
Dampers have been designed and tested
to exceed all U.L., U.L.C. and N.F.P.A.
requirements for fire dampers.

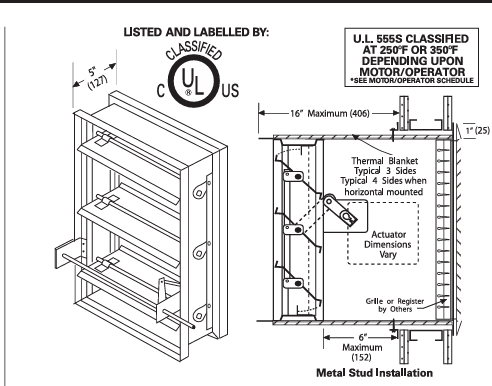

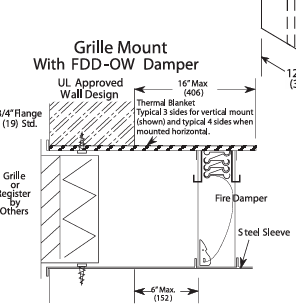

The FDD-OW fire damper has been de
signed and tested to exceed all UL, ULC,
and NFPA requirements.

Dampers are furnished approxi
mately 1/4" (6mm) smaller than given duct
dimensions.
UL/ULC Approved For Use in Dynamic and
Static Systems..

Dynamic Fire Damper, Horizontal and Vertical

Static Fire Damper, Horizontal and Vertical

The InnovairFlex™ Series are the only duct smoke
detectors flexible enough to fit configurations from
square to rectangular and everything in between.

Actuator and Jackshaft Dimensions

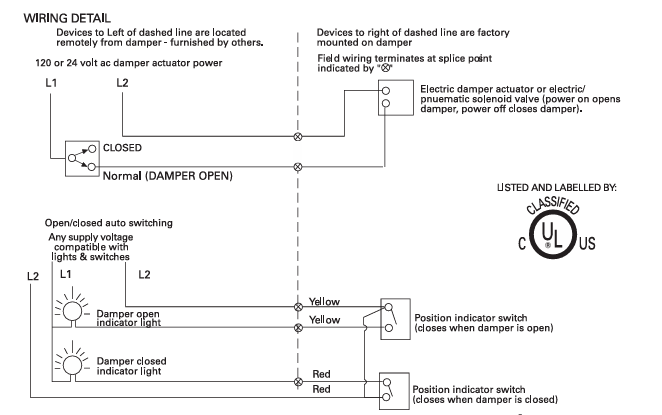

Micro Switch Package

Micro Switch Package

Damper Enclosures & Transitions

Both electric and pneumatic damper opera
tors are available from PRICE Manufacturing
and may be factory installed (see methods
below) with out SSD series smoke dampers.
We are constantly expanding our Under
writers’ Laboratories listings and therefore
recommend that you contact the factory for
the appropriateness (i.e. size limitations,
torque, and temperature) of a given fire/
smoke application. Control dampers may
be shipped with factory installed motors
provided we have the following information:
1. damper/duct size; 2. maximum velocity;
3. maximum static pressure; 4. application
(shut-off, balancing, or modulating damper);
5. location of operator (internal or external);
6. pneumatic or electric system.

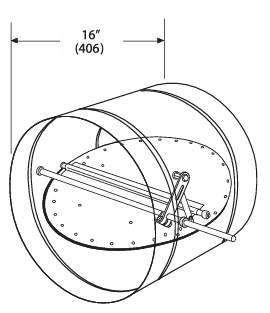

Low Leakage Smoke Damper, True Round

Dynamic Fire Damper, Horizontal and Vertical

DAMPER SWITCH PANEL

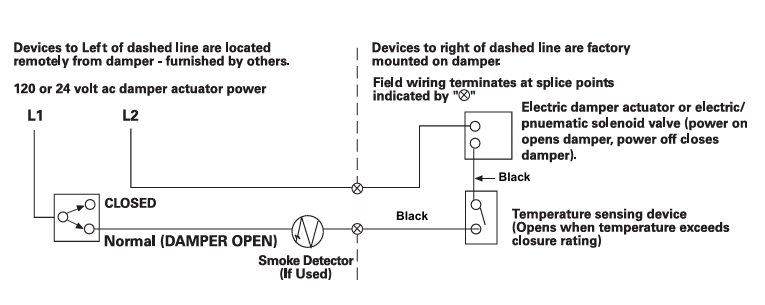

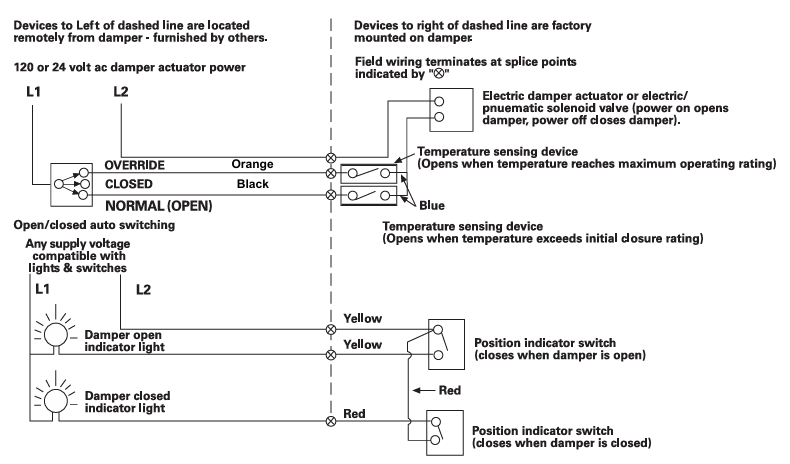

DTO/R Package - Double Thermostat Override Release

THE HS-100 SPECIAL APPLICATION PHOTOELECTRIC DUCT SMOKE DETECTOR IS A SPECIALIZED DEVICE
INTENDED FOR ENVIRONMENTS WHERE STANDARD EXTERNAL MOUNT DUCT DETECTORS ARE
UNSUITABLE. ITS DESIGN CATERS TO SPECIFIC INSTALLATION SCENARIOS IN DAMPERS WHERE VERY LOW
OR NO AIR VELOCITY IS PRESENT (≤ 100 FT./MIN).

Damper Enclosures

Damper Operators

Pneumatic Fuse Valve (PFV) for Combination Fire/Smoke Dampers

O/R package - Single Thermostat Operator Release

STO/R Package - Single Thermostat Operator Release

THE D4120A DUCT SMOKE DETECTOR DETECTS SMOKE IN AIR DUCT SYSTEMS, PREVENTING HAZARDOUS SMOKE
FROM SPREADING. USING 4-WIRE PHOTOELECTRIC TECHNOLOGY, IT SAMPLES AIR AT 100-4000 FPM, TRIGGERING
AN ALARM WHEN SMOKE IS DETECTED. THIS ALLOWS FOR ACTIONS SUCH AS SHUTTING OFF FANS OR
CONTROLLING COMBINATION FIRE-SMOKE AND SMOKE DAMPERS

Application:
PRICE Model FRA Framed Retaining Angles
may be used instead of the normal mount
ing angles being used at present. The model
FRA retaining angles can be installed on
PRICE curtain fire dampers, multi-bladed
f
ire dampers and combination fire/smoke
dampers with 11/2 hr. or 3 hr. vertical or
horizontal fire ratings. FRA angles are fac
tory supplied two per damper.

Static Fire Damper, Horizontal and Vertical

Dynamic Fire Damper, Horizontal and Vertical

Combination Fire/Smoke Damper, U.L. 555 Classified 11/2 Hours

Model FSD-3V-FA-211

THE D4120A DUCT SMOKE DETECTOR DETECTS SMOKE IN AIR DUCT SYSTEMS, PREVENTING HAZARDOUS SMOKE
FROM SPREADING. USING 4-WIRE PHOTOELECTRIC TECHNOLOGY, IT SAMPLES AIR AT 100-4000 FPM, TRIGGERING
AN ALARM WHEN SMOKE IS DETECTED. THIS ALLOWS FOR ACTIONS SUCH AS SHUTTING OFF FANS OR
CONTROLLING COMBINATION FIRE-SMOKE AND SMOKE DAMPERS

Dynamic Fire Damper, Horizontal and Vertical

Dynamic Fire Damper

Combination Fire/Smoke Damper, U.L. 555 Classified 11/2 Hours

Combination Fire/Smoke Damper, U.L. 555 Classified 11/2 Hours

Light troffer diffusers provide exceptional comfort, frequently achieving a minimum 80% on the Air Diffusion
Performance Index (ADPI). LT diffusers attach quickly and easily to most air-handling-capable light fixtures and
are suitable for surface slot and regressed slot applications.

Model FSD-AF-211/231

The FD-MB-3V Series Static Fire Dampers
have been designed and tested to exceed
all U.L., U.L.C. and N.F.P.A. requirements
for fire dampers.

The FD-OW fire damper has been de
signed and tested to exceed all UL, ULC,
and NFPA requirements.

DTO/R Package - Double Thermostat Override Release

Model FSD-3V-OW-211

The CCD-AE5-4X series Control dampers
have been designed and tested to provide
the ultimate in performance features for
sophisticated HVAC systems. Streamlined
(“airfoil”) blades provide reduced
turbulence and noise. Inflatable blade
edge and jamb seals allow extremely
tight seating without unduly increasing
torque requirements.

NOTE: Dampers are intended to be self
supporting only in the largest recommended
single sections. Multiple assemblies
may require additional bracing. PRICE
recommends appropriate bracing on
multiple assemblies at over 8' (2438mm)
of width and height.

The CCD-AE5-6X series Control dampers
have been designed and tested to provide
the ultimate in performance features for
sophisticated HVAC systems. Streamlined
(“airfoil”) blades provide reduced
turbulence and noise. Inflatable blade
edge and jamb seals allow extremely
tight seating without unduly increasing
torque requirements.

The CCD-AE5I-IB series Control dampers
have been designed and tested to provide
the ultimate in performance features for
sophisticated HVAC systems. Stream
lined (“airfoil”) blades provide reduced
turbulence and noise. Inflatable blade
edge and jamb seals allow extremely
tight seating without unduly increasing
torque requirements. Insulation around
the perimeter of the frame and in each
blade minimizes energy loss through the
closed damper.

The CCD-GV5-AF series Control Dampers
have been designed and tested to
provide the ultimate in performance
features for sophisticated HVAC systems.
Streamlined ("airfoil") blades provide
reduced turbulence and noise. Inflatable
blade edge and jamb seals allow
extremely tight sealing without unduly
increasing torque requirements.

The CCD-GV5-AF series Control Dampers
have been designed and tested to
provide the ultimate in performance
features for sophisticated HVAC systems.
Streamlined ("airfoil") blades provide
reduced turbulence and noise. Inflatable
blade edge and jamb seals allow
extremely tight sealing without unduly
increasing torque requirements.

Manufacturer’s Recommendations
All moving parts of the damper must be
inspected and cycled at intervals not greater
than every 2 years in accordance with the
latest edition of NFPA 90A, 92A, local and
national codes. In addition, the fuse link shall
be removed and inspected for corrosion. Dry
lubricants are recommended.

Complete Range of 1-4 hour rated Fire/Heat Insulation Devices
& Accessories for Penetrations in Fire-Rated Ceiling Assemblies

Model CFSR-1 / CFSR-2

Models CK-2000-1
CK-2000-1-B

Model FD-B
Static Fire Damper, Horizontal and Vertical
11/2, 3 Hour Rated
"B" Style

FD-RD
• Model FD-RD is listed for use in Static
type systems where the fan shuts down
in the event of an alarm.

The CCD-AE4-4X series Control dampers
have been designed and tested to provide
the ultimate in performance features for
sophisticated HVAC systems. Streamlined
(“airfoil”) blades provide reduced
turbulence and noise. Inflatable blade
edge and jamb seals allow extremely
tight seating without unduly increasing
torque requirements.

The CCD-GV5-3V series Control Dampers
have been designed and tested to provide
a reliable cost effective control damper
where tight sealing is not of primary im
portance. (Note: For tight sealing dampers
see Model: CCD-GV5-3V-LL).

The CCD-GV5-3V-LL series Control
Dampers have been designed and
tested to provide an extremely tight
sealing damper which is cost effective
for the majority of HVAC applications.
They are generally recommended for
face velocities up to 2000 fpm and static
pressures to 2.5" w.g. (Note: for systems
in excess of 2.5" w.g. contact the factory).

The CCD-GV5-3V-MBD series Manual
Balancing Dampers are designed and built
to provide a cost effective and reliable
damper for reduced volume control only
and not for positive shut off. The are not
intended for automatic operation.

The CCD-RD series Control Dampers have
been designed and tested to provide a
reliable cost effective control damper
where tight sealing is not of primary
importance. (Note: For tight sealing
dampers see Model CCD-RD-LL).

The CCD-RD-LL series Control Dampers
have been designed and tested to provide
an extremely tight sealing damper which
is cost effective for the majority of HVAC
applications.

The CCD-RD-MBD series Manual
Balancing Dampers are designed and
built to provide a cost effective and reliable
damper for reduced volume control only
and not for positive shutoff. They are not
intended for automatic operation.

Static Fire Damper, Horizontal and Vertical

Model FD-A-SL

Model FD-B-SL

Round Plaque Diffusers (RPD) provide a balance between engineering and architectural needs, with a flush appearance and superior VAV performance in both ceiling and exposed duct mounting applications.

The Radial Slot Diffuser (RSD) produces a high induction radial swirl pattern which promotes rapid temperature equalization and is suitable for VAV applications where high turndown is present. This product can be installed in standard 24 in. x 24 in. lay-in ceiling grids or surface mounted using a plaster frame.

High capacity, modular louvered face directional diffusers blend harmoniously with architectural details and are available with a wide array of frame styles for easy integration with modular ceiling systems. The SMD/AMD features large square and rectangular inlets for reduced inlet velocity, resulting in low sound and pressure drop even at high airflows. The modular louvered face diffuser is highly configurable with multiple core styles, airflow patterns, and optional features to tailor this product to specific applications.

The Square Plaque Diffuser (SPD) has a flush appearance, making it ideal for architecturally-conscience commercial spaces, and provides industry-leading low pressure drop and sound generation with a 360° radial, horizontal air pattern for rapid mixing and optimal thermal comfort. The one-piece, aerodynamically optimized backpan maintains the horizontal air pattern even at low air volumes, making it a great choice for high turndown VAV applications. This versatile diffuser is easy to maintain, with little to no ceiling smudging and a tool-free removable face for quick access to dampers, accessories, and ductwork.

T-bar diffusers consists of a coated steel casing with extruded aluminum center tee (minimum 2 slot) and pattern controllers. Air pattern controllers are available in multiple styles to provide various air patterns with a high induction ratio for a high degree of thermal comfort. Matching return diffusers are available to complement supply units and maintain the architectural appearance throughout the space.

T-bar diffusers consists of a coated steel casing with extruded aluminum center tee (minimum 2 slot) and pattern controllers. Air pattern controllers are available in multiple styles to provide various air patterns with a high induction ratio for a high degree of thermal comfort. Matching return diffusers are available to complement supply units and maintain the architectural appearance throughout the space.

Available in a variety of sizes and core styles, air nozzles are well suited to architectural applications that require
long throws. Deep concentric deflection rings in each supply nozzle assembly can be adjusted to provide horizontal
or vertical directional control throughout a 60° arc. The highly versatile nozzle diffusers are ideal for new or retrofit
construction and can be used in supply or return/exhaust applications in ceilings, sidewalls or directly ducted.

The VCS3 opposed blade damper provides airflow adjustment at
the grille. Volume control blades move simultaneously in opposite
directions to provide superior metering and control with minimal
disturbance of the air pattern. For optimized sound performance
it is recommended to match an upstream duct branch damper for
large volume control with a damper at the diffuser for fine tuning.

The VCS3 opposed blade damper provides airflow adjustment at
the grille. Volume control blades move simultaneously in opposite
directions to provide superior metering and control with minimal
disturbance of the air pattern. For optimized sound performance
it is recommended to match an upstream duct branch damper for
large volume control with a damper at the diffuser for fine tuning.

The VCS3 opposed blade damper provides airflow adjustment at
the grille. Volume control blades move simultaneously in opposite
directions to provide superior metering and control with minimal
disturbance of the air pattern. For optimized sound performance
it is recommended to match an upstream duct branch damper for
large volume control with a damper at the diffuser for fine tuning.

Available in a variety of sizes and core styles, air nozzles are well suited to architectural applications that require
long throws. Deep concentric deflection rings in each supply nozzle assembly can be adjusted to provide horizontal
or vertical directional control throughout a 60° arc. The highly versatile nozzle diffusers are ideal for new or retrofit
construction and can be used in supply or return/exhaust applications in ceilings, sidewalls or directly ducted.

Ideal for large retail spaces, the combination supply and return diffuser (CSRD) provides a centralized air distribution
system with uniform airflow on all four sides, featuring a concentric design. The CSRD includes an aluminum
eggcrate core for return air, surrounded by extruded aluminum blades for supply air, which allow the diffuser to
supply a high volume of air with low pressure drops and sound levels.

Ideal for industrial applications, the Drop Box Plenum is a complete package from the factory including
High-Capacity Drum Louvers (DBH). This single point air distribution system has adjustable 4-way or 6-way
pattern allowing for directional control ideal for spot cooling and heating

The VCS3 opposed blade damper provides airflow adjustment at
the grille. Volume control blades move simultaneously in opposite
directions to provide superior metering and control with minimal
disturbance of the air pattern. For optimized sound performance
it is recommended to match an upstream duct branch damper for
large volume control with a damper at the diffuser for fine tuning.

The VCS3 opposed blade damper provides airflow adjustment at
the grille. Volume control blades move simultaneously in opposite
directions to provide superior metering and control with minimal
disturbance of the air pattern. For optimized sound performance
it is recommended to match an upstream duct branch damper for
large volume control with a damper at the diffuser for fine tuning.

The Curved Vane Diffuser (CVD) is available in multiple core styles and features individually adjustable curved
vanes that are accessible from the grille face. The vanes allow for field adjustment of the diffuser to optimize
thermal comfort

The High Capacity Drum Louvers (HCD) consist of extruded aluminum blades mounted inside a rotatable drum
to produce long air throws with a high degree of directional control

Designed for sidewall, sill, ceiling, and floor installations, extruded aluminum linear bar grilles combine architectural
appeal with performance and versatility. With fixed bars parallel to the long dimension, linear bar grilles are a
popular choice for continuous or perimeter applications.

Designed for sidewall, sill, ceiling, and floor installations, extruded aluminum linear bar grilles combine architectural
appeal with performance and versatility. With fixed bars parallel to the long dimension, linear bar grilles are a
popular choice for continuous or perimeter applications.

Designed for sidewall, sill, ceiling, and floor installations, extruded aluminum linear bar grilles combine architectural
appeal with performance and versatility. With fixed bars parallel to the long dimension, linear bar grilles are a
popular choice for continuous or perimeter applications.

The Perforated Return Diffuser (PDDR) is designed to match the PDF, PDN, PDC, PDSP and PDMC perforated
supply diffusers in appearance and detail. Similar to the perforated supply diffusers, the PDDR is available in five
frame styles and six module sizes.

The VCS5 opposed blade damper is intended for use with high
capacity industrial grilles and diffusers such as the HCD, 150,
and 300 series grilles. Blades move simultaneously in opposite
directions to allow for precise metering and control with minimal
disturbance of the air pattern.

The VCS3 opposed blade damper provides airflow adjustment at
the grille. Volume control blades move simultaneously in opposite
directions to provide superior metering and control with minimal
disturbance of the air pattern. For optimized sound performance
it is recommended to match an upstream duct branch damper for
large volume control with a damper at the diffuser for fine tuning.

The VCS3 opposed blade damper provides airflow adjustment at
the grille. Volume control blades move simultaneously in opposite
directions to provide superior metering and control with minimal
disturbance of the air pattern. For optimized sound performance
it is recommended to match an upstream duct branch damper for
large volume control with a damper at the diffuser for fine tuning.

The perforated supply diffuser is available in a wide variety of sizes with a full selection of frame and mounting
styles. With five different options for air pattern control, the perforated face diffuser is extremely versatile to suit
a variety of performance requirements

The perforated supply diffuser is available in a wide variety of sizes with a full selection of frame and mounting
styles. With five different options for air pattern control, the perforated face diffuser is extremely versatile to suit
a variety of performance requirements.

The architectural perforated face diffuser features an extruded aluminum border and mounting frame that match
seamlessly for a flush mount that blends with most ceiling tiles. This diffuser makes use of a hinged, removable
perforated faceplate with quick-release spring latches for easy access to pattern controllers, dampers, and duct
work. With a diffuser height of only 3 in. the architectural perforated diffusers require minimal ceiling plenum height.

The Perforated Face Return Module (PFRF) is an economical, high capacity return inlet. These perforated ceiling
panels are used as non-ducted return inlets for T-bar lay-in ceilings. With no frame, free area is maximized to
provide low noise and pressure drop.

The architectural perforated face diffuser features an extruded aluminum border and mounting frame that match
seamlessly for a flush mount that blends with most ceiling tiles. This diffuser makes use of a hinged, removable
perforated faceplate with quick-release spring latches for easy access to pattern controllers, dampers, and duct
work. With a diffuser height of only 3 in. the architectural perforated diffusers require minimal ceiling plenum height.

The perforated supply diffuser is available in a wide variety of sizes with a full selection of frame and mounting
styles. With five different options for air pattern control, the perforated face diffuser is extremely versatile to suit
a variety of performance requirements.

Available in a variety of sizes and with multiple mounting options, the Nozzle Diffuser (ND) is well suited to
industrial and commercial applications that require long throws and accurate directional control for full mixing
or spot cooling and heating.

All risk resistant grilles feature heavy-duty, all-welded construction and thread resistant cores, ideal for high
security applications. Multiple core and mounting options allow flexibility for various installations

Linear security grilles provide a safe alternative to traditional slot diffusers in spaces that require a high level of
security. they come standard with a risk-resistant perforated face, that is available in one-way and two-way airflow
patterns. integral engineered plenums can be provided to ensure performance of the linear grille is achieved.

The Linear Vane Diffuser (LV) features a removable louvered core with fixed 1 or 2-way airflow and is suitable for
installation in ceilings and sidewalls. Optional continuous construction and anodized finishes make the LV ideal
for architectural applications.

Light troffer diffusers provide exceptional comfort, frequently achieving a minimum 80% on the Air Diffusion
Performance Index (ADPI). LT diffusers attach quickly and easily to most air-handling-capable light fixtures and
are suitable for surface slot and regressed slot applications.

Linear Enclosures (LE) feature heavy-gauge aluminum construction with extruded aluminum bar grilles and allow
for natural convection or forced air perimeter heating. Long runs of linear enclosure, typically installed under
windows along building perimeters, are supplied as multi-piece construction for clean, continuous look.

The Linear Diffuser Low Temperature (LDLT) features insulated construction to prevent condensation and an
engineered induction chamber with tapered air nozzles to optimize induction and reduce sound and pressure drop.

The VCS3 opposed blade damper provides airflow adjustment at
the grille. Volume control blades move simultaneously in opposite
directions to provide superior metering and control with minimal
disturbance of the air pattern. For optimized sound performance
it is recommended to match an upstream duct branch damper for
large volume control with a damper at the diffuser for fine tuning.

Square-to-Round adaptors (SR) allow direct connection to round
ducts for square necked diffusers/grilles.

Plaster frames allow for easy installation of square ceiling or t-bar
style slot diffusers into drywall ceilings

The modular core directional diffuser (SMCD/AMCD) supplies large volumes of air at low sound levels and
pressure drops. The modular core design allows for easy, tool-free reconfiguration of the discharge pattern and
easy access to ductwork for maintenance. With a tight horizontal discharge air pattern, even at low air volumes,
the modular core directional diffuser is well suited to VAV applications.

The Radial Vane Diffuser (RVD) features fixed radial slots that provide a high induction vortex airflow that discharges
horizontally from the face of the diffuser.

The Radial Twist Diffuser (RTD) is the quietest and most economical high-induction radial twist diffuser on the
market. The radial design allows the RTD to combine excellent air mixing capabilities with low sound and pressure
drop.

El difusor lineal SDS está diseñado para satisfacer las aplicaciones arquitectónicas que requieren longitudes
continuas sin comprometer el desempeño de la distribución de aire. Estos difusores lineales de ranura tienen
controladores de patrón aerodinámicos completamente ajustables, fabricados con aluminio extruido y están
disponibles en una gran selección de estilos de marcos. El SDS entrega una combinación ideal de excelencia en
ingeniería y atractivo arquitectónico.

The SDS linear slot diffuser is designed to satisfy architectural applications that require continuous lengths without
compromising air distribution performance. These linear slot diffusers feature fully adjustable, aerodynamic pattern
controllers fabricated from extruded aluminum, and are available in a large selection of frame styles. The SDS
provides the ideal combination of engineering excellence and architectural appeal.

The SDS linear slot diffuser is designed
to satisfy architectural applications
that require continuous lengths
without compromising air distribution
performance.

The Universal Plenum (UP) is designed to fit Price Custom Flow,
Linear Slot Diffuser, and Linear Bar Grille products.

CROSS REFERENCE CHART

SHP Shapes Diffusers are designed to integrate with Armstrong® DesignFlex™ Shapes Ceiling Systems. These
extruded aluminum triangular and parallelogram diffusers offer superior architectural design and engineered
performance. The partnership between Armstrong Ceilings and Price Industries combines architectural and
engineering expertise to provide a unique blend of aesthetics and occupant comfort.

El difusor cuadrado de conos (SCD) tiene una carcasa trasera aerodinámica y un ensamblaje de conos que crea
un patrón de aire radial horizontal de 360°. El SCD promueve un mezclado rápido, la compensación de
temperatura y una reducción de velocidad con baja caída de presión y generación de ruido líderes en la industria.
Ideal para las aplicaciones de VAV con altas velocidades de caída, el SCD mantiene un patrón de aire constante
y estable incluso a medida que se reduce el volumen de aire, minimizando el vaciamiento y los tiros.

El difusor cuadrado de conos (SCD) tiene una carcasa trasera aerodinámica y un ensamblaje de conos que crea
un patrón de aire radial horizontal de 360°. El SCD promueve un mezclado rápido, la compensación de
temperatura y una reducción de velocidad con baja caída de presión y generación de ruido líderes en la industria.
Ideal para las aplicaciones de VAV con altas velocidades de caída, el SCD mantiene un patrón de aire constante
y estable incluso a medida que se reduce el volumen de aire, minimizando el vaciamiento y los tiros.

Custom Flow (CF) slot diffusers are uniquely designed for curving and long continuous installations. The CF
offers a large range of airflow flexibility with one or two slot arrangements, various slot widths, and vertical or
horizontal pattern adjustment.

T-bar diffusers consists of a coated steel casing with extruded aluminum center tee (minimum 2 slot) and pattern
controllers. Air pattern controllers are available in multiple styles to provide various air patterns with a high induction
ratio for a high degree of thermal comfort. Matching return diffusers are available to complement supply units
and maintain the architectural appearance throughout the space.

The perforated supply diffuser is available in a wide variety of sizes with a full selection of frame and mounting
styles. With five different options for air pattern control, the perforated face diffuser is extremely versatile to suit
a variety of performance requirements.

The Perforated Face Return Module (PFRF) is an economical, high capacity return inlet. These perforated ceiling
panels are used as non-ducted return inlets for T-bar lay-in ceilings. With no frame, free area is maximized to
provide low noise and pressure drop.

Round Cone Diffusers (RCD) combine the visual appeal of a round cone design with maximum air diffusion
efficiency. The RCD offers adjustable airflow with a variety of different adjustment methods allowing for the perfect
balance between performance and economy

T-bar diffusers consists of a coated steel casing with extruded aluminum center tee (minimum 2 slot) and pattern
controllers. Air pattern controllers are available in multiple styles to provide various air patterns with a high induction
ratio for a high degree of thermal comfort. Matching return diffusers are available to complement supply units
and maintain the architectural appearance throughout the space

The TBD7 is a fixed pattern, T-bar mounted linear slot diffuser designed to provide high air capacity with a tight
horizontal air pattern. Designed for flexible duct connections, TBD7 diffusers can be easily installed in most T-bar
suspension ceiling systems. Matching return diffusers are available to complement supply units and maintain the
architectural feel throughout the space.

The Round Industrial Diffuser (RID) is a high-capacity ceiling diffuser that features heavy-gauge, spun steel
construction and fully adjustable airflow making it ideal for industrial applications with high ceilings.

Sizing a single diffuser for both heating and cooling applications is challenging, as differing supply temperatures
have different buoyancies and vastly different throw distances. The TBDI6-HC uses a thermally powered wax
actuator to address this issue; washing exterior spaces with a high velocity jet of air during heating, and minimizing
drafts by switching to a horizontal throw pattern during cooling without power or internal electronic components.

The VCR7 opposed blade round damper provides airflow adjustment
at the diffuser neck. Volume control blades move simultaneously
in opposite directions to provide superior metering and control
with minimal disturbance of the air pattern. For optimized sound
performance it is recommended to match an upstream duct branch
damper for large volume control with a damper at the diffuser for
fine tuning.

TBD-FR SERIES, SUPPLY & RETURN INSTALLATION

The VCR9 round, galvanized steel, radial style damper provides
airflow adjustment at the diffuser or plenum neck. Volume control
blades move simultaneously in opposite directions, to provide
superior metering and control with minimal disturbance of the air
pattern. For optimized sound performance it is recommended to
match an upstream duct branch damper for large volume control
with a damper at the diffuser for fine tuning.

VCS6 and VCR6 combination damper/equalizing grids are easily
installed in round or square duct take-offs and feature a fully
adjustable damper blade that opens directly into the main duct
air stream for precision air control.

The Modular Floor Diffuser (MFD) is available in both a displacement pattern and a twist pattern. Manual adjustable
baskets are typical, while several other basket styles are available.

Corner Displacement Diffusers (DF1C) supply low velocity discharge air in a 1-way pattern, directly into the occupied zone. The DF1C is designed for installation at the junction of two walls or in a 90º recess. This diffuser meshes seamlessly into any décor. The superior air quality and low noise levels realized with the DF1C make it suitable for classrooms, office spaces, restaurants, theaters, hotels, and convention centers.

Exposed Displacement Diffusers (DFE) supply low velocity discharge air in a 1-way or 3-way pattern, directly into
the occupied zone. DFE diffusers are designed to be installed along a sidewall, against a pillar or integrated into
features such as bookcases or shelves. The superior air quality and low noise levels realized with these units
make them suitable for schools, office spaces, restaurants, theaters, hotels, and convention centers.

The Displacement Flow In-wall diffuser (DFW) supplies low velocity air in a 1-way pattern into the occupied zone.
The DFW together with its plenum are designed to fit in a standard 4 in. deep stud wall. The DFW diffuser mounts
flush to the wall surface and allow for more floor space, making them ideal for high occupancy areas such as
classrooms, office spaces, restaurants, supermarkets, theaters, hotels, and convention centers.

The 90 Degree Displacement Diffuser (DR90) supplies low velocity air in a 90° radial pattern directly into the
occupied zone. Ceiling/duct or floor mounting options are available. An optional base or duct cover may also be
supplied with the unit. These appealing diffusers mesh seamlessly into any décor and as a result may be suitable
for schools, office spaces, hotels, and convention centers

The 90 Degree Displacement Diffuser (DR90) supplies low velocity air in a 90° radial pattern directly into the
occupied zone. Ceiling/duct or floor mounting options are available. An optional base or duct cover may also be
supplied with the unit. These appealing diffusers mesh seamlessly into any décor and as a result may be suitable
for schools, office spaces, hotels, and convention centers.

Corner Displacement Diffusers (DF1C) supply low velocity discharge air in a 1-way pattern, directly into the
occupied zone. The DF1C is designed for installation at the junction of two walls or in a 90º recess. This diffuser
meshes seamlessly into any décor. The superior air quality and low noise levels realized with the DF1C make it
suitable for classrooms, office spaces, restaurants, theaters, hotels, and convention centers

The Linear Displacement Floor Grille (DFGL) is a floor mounted linear displacement grille that supplies low velocity
discharge air from an underfloor plenum or a ducted supply into the occupied zone. The DFGL is best suited
for linear perimeter applications and is typically used in raised floors, floor cavities or on the top of sills. The low
noise levels combined with the sleek look of the diffuser make it suitable for office spaces, places of worship,
galleries, schools or any application requiring a comfortable, quiet space

The Rectangular Industrial Displacement Diffuser (DFXI) is a freestanding diffuser that can supply low velocity
discharge air from up to four active sides into the occupied zone. The DFXI is typically applied in areas with
higher loads and higher occupant activity. The rigid and reinforced construction of the DFXI makes it ideal for
use in industrial spaces, gyms and spaces with the potential for impact with the diffuser.

The Linear Enclosure Displacement Diffuser (DLE) is a low level, wall mounted diffuser that supplies low velocity
discharge air through its extruded bar face into the occupied zone. The DLE, with its pencil proof bar grille is
designed to be mounted along the perimeter, sidewalls and even integrated into shelving. Typical applications
include classrooms, cafeterias and multi-functional spaces.

The 180 Degree Displacement Diffuser (DR180) supplies low velocity air in a 180° radial pattern directly into the
occupied zone. An optional base or duct cover may also be supplied with the unit. These appealing diffusers
mesh seamlessly into any décor and as a result may be suitable for schools, office spaces, hotels, and convention
centers.

The 360 Degree Displacement Diffuser (DR360) supplies low velocity air in a 360° radial pattern directly into the
occupied zone. The DR360 is a versatile unit that can be free standing or duct hung. An optional base or duct
cover may also be supplied with the unit. These appealing diffusers mesh seamlessly into any décor and as a
result may be suitable for schools, office spaces, hotels, and convention centers.

The Modular Floor Diffuser (MFD) is available in both a displacement pattern and a twist pattern. Manual adjustable
baskets are typical, while several other basket styles are available.
The Price modular floor diffusers have been designed as an efficient air supply for use in air distribution systems
utilizing a raised floor design.
A number of different accessories and mounting options are available to suit a wide range of applications

Price Duct Covers for displacement
diffusers provide a consistent look from
floor to ceiling. These products continue the
appearance of the diffuser while concealing
the duct work for an architecturally appealing
installation. Duct covers can be supplied in
solid steel or perforated material to match
the diffuser face. When using a perforated
duct cover, the ductwork can be painted
black for a finished look. The duct cover is
available in varying lengths and can be split
into multiple sections to create a symmetric
look with the diffuser. These units are
perfect for top ducted diffusers where
exposed ductwork is not desired, such as
hotel lobbies, office boardrooms, schools,
and restaurants. See specific product for
availability.

The Airflow Sensing Device (AFSD) is a flow measuring station combined with an adjustable damper whereby the
air volume can be adjusted. The SP300 multipoint sensor ensures accurate pressure measurement, allowing the
balancer to monitor the velocity pressure in the duct. The integral manually operated damper with quarter-lock
allows for adjustment until the desired flow rate is obtained. A label on the side provides indication of the airflow
for a given velocity pressure. The AFSD is specifically designed to operate with displacement ventilation systems
to help balance downstream pressure and help in supplying optimum flow rate to the diffuser.

The 90 Degree Displacement Diffuser (DR90) supplies low velocity air in a 90° radial pattern directly into the
occupied zone. Ceiling/duct or floor mounting options are available. An optional base or duct cover may also be
supplied with the unit. These appealing diffusers mesh seamlessly into any décor and as a result may be suitable
for schools, office spaces, hotels, and convention centers.

The 180 Degree Displacement Diffuser (DR180) supplies low velocity air in a 180° radial pattern directly into the
occupied zone. An optional base or duct cover may also be supplied with the unit. These appealing diffusers
mesh seamlessly into any décor and as a result may be suitable for schools, office spaces, hotels, and convention
centers.

The Linear Displacement Floor Grille (DFGL) is a floor mounted linear displacement grille that supplies low velocity
discharge air from an underfloor plenum or a ducted supply into the occupied zone. The DFGL is best suited
for linear perimeter applications and is typically used in raised floors, floor cavities or on the top of sills. The low
noise levels combined with the sleek look of the diffuser make it suitable for office spaces, places of worship,
galleries, schools or any application requiring a comfortable, quiet space

The Heat/Cool Ceiling Displacement Diffuser (DF1L-HC) is a ceiling mounted diffuser with a heat/cool change
over that supplies low velocity discharge air in cooling through the perforated face and high velocity warmer air
through a 1 in. custom flow integrated slot diffuser. The DF1L-HC is designed to be installed in the standard
T-bar ceiling making it ideal for spaces with minimal floor or wall space, transient areas (hallways and corridors)
or along the perimeter.

The Ceiling Displacement Diffuser (DFC) supplies low velocity discharge air into the occupied zone. The DFC is
designed to be installed in a standard T-bar ceiling making it ideal for spaces with minimal floor or wall space,
transient areas (hallways and corridors) or along the perimeter. The low noise levels, superior air quality and
overhead mounting make the DFC ideal for classrooms, offices and hallways.

The 360 Degree Displacement Diffuser (DR360) supplies low velocity air in a 360° radial pattern directly into the
occupied zone. The DR360 is a versatile unit that can be free standing or duct hung. An optional base or duct
cover may also be supplied with the unit. These appealing diffusers mesh seamlessly into any décor and as a
result may be suitable for schools, office spaces, hotels, and convention centers.

The Linear Enclosure Displacement Diffuser with Integral Heat (DLE-H) uniquely combines natural convective
heating with low level displacement cooling into one cabinet enclosure. The heating option is ideal for conditioning
the perimeter while still providing superior air quality. The DLE-H is equipped with a fin tube that in heating mode
allows the unit to pull cool air through the face, warm it, and discharge the air upwards along a cool window
similar to a baseboard heater. This helps to eliminate draft and frosting of a cool exterior window. The DLE, with
its pencil proof bar grille, is designed to be mounted along the perimeter, sidewalls and even integrated into
shelving. Typical applications include classrooms, cafeterias and multi-functional spaces.

The Recessed Displacement Diffuser (DFR) is a unique diffuser that supplies low velocity discharge air in a
1-way pattern into an occupied zone from relatively hidden locations. The DFR has an easy to install perforated
face that is securely retained with mounting clips in a contractor supplied plenum. A mud frame is available for
drywall applications. With no visible fasteners the DFR can be discreetly installed in stair risers, in a wall at floor
level or in a toe kick, making it ideal for classrooms, theaters and lobbies

The BHP is a horizontal draw-through blower coil unit that is designed to quietly operate in an expansive nominal
airflow range from 1200 – 6000 CFM. By utilizing a high efficiency plenum fan, the BHP can satisfy high static
pressure requirements while offering additional features such as larger heat exchangers. The BHP is compatible
with several different heating systems such as conventional boilers, condensing boilers, and heat pumps, due
to its increased heating coil configurations.

The Horizontal Air Change Blower Coil (ACHU) is a component of the Price Ultrasuite +Climate high air change
system. The ACHU provides hospital operating theaters with an increased number of air changes per hour.
These air changes result in improved thermal comfort and indoor air quality for patients and hospital staff,
providing a marketable cutting edge solution for hospital owners. The ACHU’s compact and unique same-side
supply and return connections minimize

The BCHD Horizontal Blower Coil is a low-profile solution for applications that require flexibility between a
traditional fan coil unit and a central station air handling unit. This adaptable blower coil operates in a large airflow
range from 200 to 4600 cfm by combining an optimized fan and motor assembly with a Price EC motor speed
controller. The wide variety of coil and construction options offered with the BCHD ensures that it can meet the
needs of many applications while providing conditioned air to one or more zones

These units are reliable, high performing, energy
efficient, quiet, and available with a variety of
insulation and coil configuration options

The FCHG is a high performance fan coil that features low noise, high capacity, and pressure capability up to 0.5 in. w.g.
making it an excellent choice for a variety of applications. This high performance unit features a low profile design with
casing heights as low as 10 1/4 in.

The FCV is a vertical blow-through fan coil designed for a wide variety of wall-mounted applications. This
adaptable fan coil operates in a large airflow range from 200 to 1200 CFM by utilizing quiet, energy efficient ECM
motors with adjustable 3-speed or full modulating control. Compatibility with conventional boilers, condensing
boilers, and low-temperature central plants, coupled with up to 5 rows of cooling and heating coils, make this
unit suitable for many applications.

These units are reliable, high performing, energy
efficient, quiet, and available with a variety of
insulation and coil configuration options

The 20/30 Series Airfoil Supply Grille features premium quality, extruded aluminum construction. Individual blades
are fully adjustable and the airfoil shape helps to reduce turbulence, leading to low sound and pressure drops.

The 300 Heavy Duty Airfoil Supply Grille is well-suited to industrial applications, with individually adjustable blades
and wide blade spacing for maximum free area and the ability to spot heat and cool.

The 60/70 Series Airfoil Return Grille features premium quality, extruded aluminum construction, resulting in
clean, crisp detailing to blend with almost any architectural surrounding. The heavy extruded aluminum blades
are fixed at a 45° angle for minimal see-through.

The 80 Series Egg Crate Return Grille is available in various mounting styles and features sturdy construction,
consisting of a heavy gauge aluminum grid core, optional extruded aluminum borders and frames, and a durable
powder coat finish. A number of aluminum grid core options are available with varying grid spacing and depth
to accommodate architectural and performance needs.

Designed for sidewall, sill, ceiling, and floor installations, extruded aluminum linear bar grilles combine architectural
appeal with performance and versatility. With fixed bars parallel to the long dimension, linear bar grilles are a
popular choice for continuous or perimeter applications.

The 10 Series Perforated Return Grille is designed to match perforated supply diffusers to provide a coordinated
aesthetic throughout a space. Featuring 51% free area, the 10 Series grille maintains low noise and pressure
drop in high capacity return applications

Ideal for industrial applications, the 150 Heavy Duty Louvered Supply Grille features individually adjustable blades
spaced on 1.5 in. centers to accommodate large air volumes and provide directional control suitable for spot
heating and cooling.

The 900 Series Adjustable Steel Heavy Duty Gym Grille is available as a single or double deflection grille and
features individually adjustable front blades, designed for demanding applications where durability is a major
concern.

The VCS3 opposed blade damper provides airflow adjustment at
the grille. Volume control blades move simultaneously in opposite
directions to provide superior metering and control with minimal
disturbance of the air pattern. For optimized sound performance
it is recommended to match an upstream duct branch damper for
large volume control with a damper at the diffuser for fine tuning.

Available in a variety of sizes and core styles, air nozzles are well suited to architectural applications that require
long throws. Deep concentric deflection rings in each supply nozzle assembly can be adjusted to provide horizontal
or vertical directional control throughout a 60° arc. The highly versatile nozzle diffusers are ideal for new or retrofit
construction and can be used in supply or return/exhaust applications in ceilings, sidewalls or directly ducted.

Ideal for industrial applications, the Drop Box Plenum is a complete package from the factory including
High-Capacity Drum Louvers (DBH). This single point air distribution system has adjustable 4-way or 6-way
pattern allowing for directional control ideal for spot cooling and heating

Designed for sidewall, sill, ceiling, and floor installations, extruded aluminum linear bar grilles combine architectural
appeal with performance and versatility. With fixed bars parallel to the long dimension, linear bar grilles are a
popular choice for continuous or perimeter applications

The High Capacity Drum Louvers (HCD) consist of extruded aluminum blades mounted inside a rotatable drum
to produce long air throws with a high degree of directional control

Designed for sidewall, sill, ceiling, and floor installations, extruded aluminum linear bar grilles combine architectural
appeal with performance and versatility. With fixed bars parallel to the long dimension, linear bar grilles are a
popular choice for continuous or perimeter applications

Available in a variety of sizes and core styles, air nozzles are well suited to architectural applications that require
long throws. Deep concentric deflection rings in each supply nozzle assembly can be adjusted to provide horizontal
or vertical directional control throughout a 60° arc. The highly versatile nozzle diffusers are ideal for new or retrofit
construction and can be used in supply or return/exhaust applications in ceilings, sidewalls or directly ducted.

Linear Enclosures (LE) feature heavy-gauge aluminum construction with extruded aluminum bar grilles and allow
for natural convection or forced air perimeter heating. Long runs of linear enclosure, typically installed under
windows along building perimeters, are supplied as multi-piece construction for clean, continuous look.

Lattice Grilles (LG) are available in a number of standard mesh patterns and can be fabricated in steel, stainless
steel, or aluminum to suit the desired strength, corrosion and finish needs.

Security bar grilles restrict access and allow airflow between secure and non-secured areas. Ideal for maximum
security applications, security bar grilles feature all-welded construction and are mounted to the wall using a welded
frame with optional mounting flanges. Maximum security bar grilles are available in three main configurations:
standard, double ribbed and tool-resistant.

Security grilles reduce unwanted
access to ductwork in spaces
where supervision is minimal and
vandalism or misuse is a risk. Such
areas include: correctional facilities,
psychiatric hospitals, rest stops,
park facilities, schools, and sports
venues. Maximum security bar grilles
provide additional security in openings
between secure and non-secure
areas, and should be placed in every
opening through a secure wall.

Lattice and perforated security grilles reduce the risk of damage and disassembly associated with traditional
grilles in secure areas. With minimum and maximum security options as well as a variety of mounting types, these
grilles are suitable for supply and return applications.

Available in a variety of sizes and with multiple mounting options, the Nozzle Diffuser (ND) is well suited to
industrial and commercial applications that require long throws and accurate directional control for full mixing
or spot cooling and heating.

The Reversible Core Grille (RCG) is an easily adjustable, all-aluminum sidewall supply grille, well suited to both
heating and cooling applications. The removable core can be repositioned to provide four different vertical
deflections including: 15° up, 15° down, 5° up, 5° down. Optional rear-mounted deflecting vanes control horizontal
spread.

Round grilles combine the versatility and modern aesthetics of a circular design with high quality, aluminum
construction.

Round grilles combine the versatility and modern aesthetics of a circular design with high quality, aluminum
construction.

Round grilles combine the versatility and modern aesthetics of a circular design with high quality, aluminum
construction.

Spiral Duct Grilles (SDG) are designed to be mounted on round or spiral ducts without the use of transitions.
Available with single or double deflection supply and perforated return options, the SDG is highly versatile.

Transfer Grilles offer the largest free area possible with the option of a sight-proof or light-proof core. Transfer
grilles are designed for use in doors and partitions to allow for smooth transfer of air between spaces. Such
spaces include storage rooms and restrooms.

Transfer Grilles offer the largest free area possible with the option of a sight-proof or light-proof core. Transfer
grilles are designed for use in doors and partitions to allow for smooth transfer of air between spaces. Such
spaces include storage rooms and restrooms.

The VCS3 opposed blade damper provides airflow adjustment at
the grille. Volume control blades move simultaneously in opposite
directions to provide superior metering and control with minimal
disturbance of the air pattern. For optimized sound performance
it is recommended to match an upstream duct branch damper for
large volume control with a damper at the diffuser for fine tuning.

The VCS3 opposed blade damper provides airflow adjustment at
the grille. Volume control blades move simultaneously in opposite
directions to provide superior metering and control with minimal
disturbance of the air pattern. For optimized sound performance
it is recommended to match an upstream duct branch damper for
large volume control with a damper at the diffuser for fine tuning.

The VCS5 opposed blade damper is intended for use with high
capacity industrial grilles and diffusers such as the HCD, 150,
and 300 series grilles. Blades move simultaneously in opposite
directions to allow for precise metering and control with minimal
disturbance of the air pattern.

The VCS3 opposed blade damper provides airflow adjustment at
the grille. Volume control blades move simultaneously in opposite
directions to provide superior metering and control with minimal
disturbance of the air pattern. For optimized sound performance
it is recommended to match an upstream duct branch damper for
large volume control with a damper at the diffuser for fine tuning.

Available in a variety of sizes and core styles, air nozzles are well suited to architectural applications that require
long throws. Deep concentric deflection rings in each supply nozzle assembly can be adjusted to provide horizontal
or vertical directional control throughout a 60° arc. The highly versatile nozzle diffusers are ideal for new or retrofit
construction and can be used in supply or return/exhaust applications in ceilings, sidewalls or directly ducted.

Designed for sidewall, sill, ceiling, and floor installations, extruded aluminum linear bar grilles combine architectural
appeal with performance and versatility. With fixed bars parallel to the long dimension, linear bar grilles are a
popular choice for continuous or perimeter applications.

Lattice and perforated security grilles reduce the risk of damage and disassembly associated with traditional
grilles in secure areas. With minimum and maximum security options as well as a variety of mounting types, these
grilles are suitable for supply and return applications.

Linear security grilles provide a safe alternative to traditional slot diffusers in spaces that require a high level of
security. they come standard with a risk-resistant perforated face, that is available in one-way and two-way airflow
patterns. integral engineered plenums can be provided to ensure performance of the linear grille is achieved.

All risk resistant grilles feature heavy-duty, all-welded construction and thread resistant cores, ideal for high
security applications. Multiple core and mounting options allow flexibility for various installations.

All risk resistant grilles feature heavy-duty, all-welded construction and thread resistant cores, ideal for high
security applications. Multiple core and mounting options allow flexibility for various installations

All risk resistant grilles feature heavy-duty, all-welded construction and thread resistant cores, ideal for high
security applications. Multiple core and mounting options allow flexibility for various installations

The Medium Security Screen Grille (MSSG) features all-welded construction with 10 GA, 3/8 in. x 3/8 in. wire
mesh secured to a 10 GA steel frame. Multiple construction options allow the MSSG to be customized to meet
installation requirements.

Louvered security grilles features all-welded construction with a heavy-gauge wire screen fixed behind the louver
blades for additional security.

The 500/600/700 Series Louvered Grille makes uses adjustable (supply) or fixed (return) blades to control airflow
and provide a supply or return unit with minimal see-through

La rejilla tipo persiana de la serie 500/600/700 utiliza hojas ajustables (suministro) o fijas (retorno) para controlar el
caudal de aire y entregar una unidad de suministro o de retorno con la mínima translucidez.

The 500/600/700 Series Louvered Grille makes uses adjustable (supply) or fixed (return) blades to control airflow
and provide a supply or return unit with minimal see-through

The 540/640 Residential Supply Grille is available with a standard or split section parallel blade damper. The
front blades are individually adjustable for pattern direction control, while an integrated damper provides volume
control. The 540/640 is ideally suited for apartment, condominium, or residential applications.

Louvered security grilles features all-welded construction with a heavy-gauge wire screen fixed behind the louver
blades for additional security.d

Louvered security grilles features all-welded construction with a heavy-gauge wire screen fixed behind the louver
blades for additional security

The 90 Series Heavy Duty Return Gym Grille features a fully welded border and mandrel tubes that support the
blades to prevent damage, making them ideal for heavy duty applications. Available in both steel and aluminum
construction with multiple core styles and mounting options, the 90 Series can be customized to suit each
application.

Chilled beams are sensible cooling and heating devices that reduce airflow requirements for a space by using
the waterside design in addition to the primary air. Displacement ventilation provides an energy efficient way
of improving indoor air quality, increasing thermal comfort within spaces, and allowing for a higher ventilation
effectiveness. The Cabinet Displacement Chilled Beam (ACBC) combines the benefits of these two technologies
to provide an energy efficient HVAC system and improved comfort benefits.
The ACBC is designed for high occupancy applications such as classrooms

The Linear Induction Unit (LIU) is Price Industries’ solution to high latent applications. This induction unit can be
utilized in room centers with its 2 way throw pattern to provide optimum thermal comfort. The LIU is designed to
provide cooling and heating output by conditioning the room air induced through the beams hydronic coil while
simultaneously supplying fresh, conditioned air to the occupied area. The incorporation of a condensate drain
pan allows for higher latent and colder water applications.

Radiant systems are gaining in popularity
due to their ability to offer increased energy
efficiency and cost savings when compared
with traditional all air systems. As more
experience is gained in designing Radiant
systems, it is recognized that the control
systems and accessories associated with
these systems carry unique characteristics
and opportunities. For this reason, Price
controls for Radiant systems have been
designed to be as versatile and modular as
possible, and the accessories and options
have been chosen to co

The Retrofit Induction Unit (RIU) is designed as a direct replacement for older, legacy induction units no longer
available through the previous manufacturer. The RIU can be selected to operate at lower static pressures to
provide the same capacity as the existing system which can result in significant fan energy savings or it can be
selected to be used with the existing system for a one-to-one swap.

The TRM is an injection mixing module specifically designed for hydronic systems. It improves system controllability
by enabling dynamic zone level EWT adjustment. Typically installed with modern Chilled Beams and radiant
systems, this module helps minimize piping, GPM, and pump HP required to condition a building. At the same
time, allowing the use of sensible only hydronic systems in spaces with high dew point fluctuation (ex. operable
windows).

Price NJE2 fixed blade nondrainable louvers feature alloy
6063-T5 extruded 2" aluminum
blades positioned at a 30° angle,
optimizing air performance in a
compact, streamlined unit.

Price NSE1 fixed blade non
drainable louvers feature alloy
6063-T5 extruded 1.5" aluminum
blades positioned at a 29° angle,
optimizing air performance in
a compact streamlined unit.

Acoustical louvers are an attractive way to provide ventilation as well as sound attenuation. The aerodynamically
designed internal geometry allows air to flow through with minimal pressure drop and maximum sound attenuation.
Acoustic louvers are available in a variety of sizes and finishes allowing this product to be used in any application
and meet architectural requirements.

Price ZE439 fixed blade nondrainable louvers feature alloy
6063-T5 extruded 4" aluminum
blades positioned at a 39° angle
and jamb gutters balancing air
and water performance for a
streamlined architectural aesthetic.

Price JE443 fixed blade nondrainable louvers feature alloy
6063-T5 extruded 4” aluminum
blades positioned at a 43° angle,
optimizing air performance.

Price DE439 fixed blade drainable
louvers feature alloy 6063-T5
extruded 4" aluminum blades
positioned at a 39° angle, optimizing
air performance and water
penetration ratings with vertical
and horizontal gutter systems
that capture droplets and prevent
entrainment in the air stream.

LOOSE SILL ASSEMBLY

SIZING NOTES
1. Louvers can be ordered by either the nominal (i.e. rough opening) dimensions or by the actual dimensions.
2. For nominal sized louvers, Price's standard practice is to leave a 1/4" (6mm) gap between the louver and the
opening perimeter to allow for thermal expansion, to leave room for sealant and to compensate for irregularities in
the sides of the opening.
3. For actual sized louvers, the louver will be manufactured to the ordered dimensions.

MAINTENANCE RECOMMENDATIONS
FOR LOUVERS AND RELATED ACCESSORIES

MOUNTING METHODS

SPLICE PLATE ASSEMBLY

4" Kitchen Exhaust Louver

Designed to meet the requirements of NFPA 96 Section 7.8.3
for Wall Terminals, the KX445 directs hot grease-laden kitchen
exhaust upwards and away from surrounding walls and nearby
pedestrian ways. At 4" deep with a 3° upward exhaust blade
angle, Price’s KX445 fixed blade kitchen exhaust louvers are
available in a variety of materials and finishes to suit your
project.

Louver de Extracción para Cocina de 4"

CLIP ANGLE ASSEMBLY

EXPANSION CLOSURE PLATE ASSEMBLY INSTRUCTIONS

MULLION ASSEMBLY

MULTI-SECTION LOUVERS
CONTINUOUS BLADE APPEARANCE

MULTI-SECTION LOUVERS
STANDARD APPEARANCE

SPLICE ANGLE ASSEMBLY

LOOSE SILL ASSEMBLY

6" Kitchen Exhaust Louver

Designed to meet the requirements of NFPA 96 Section 7.8.3
for Wall Terminals, the KX645 directs hot grease-laden kitchen
exhaust upwards and away from surrounding walls and nearby
pedestrian ways. At 6" deep with a 3° upward exhaust blade
angle, Price’s KX645 fixed blade kitchen exhaust louvers are
available in a variety of materials and finishes to suit your
project.

CLIP ANGLE ASSEMBLY

CLIP ANGLE ASSEMBLY

EXPANSION CLOSURE PLATE ASSEMBLY INSTRUCTIONS

EXPANSION CLOSURE PLATE ASSEMBLY INSTRUCTIONS

LOOSE SILL ASSEMBLY

MAINTENANCE RECOMMENDATIONS
FOR LOUVERS AND RELATED ACCESSORIES

Axial fan silencers are designed to provide noise attenuation at the source, as well as improve aerodynamic
performance at the fan inlet and discharge. The AFS provides maximum static regain and a uniform velocity
profile to improve system efficiency and reduce energy consumption.

Acoustic Panels (AP) are ideal for use in barriers and enclosures in many industrial applications. The tongue-andgroove design is self-aligning, easy to install and structurally sound, making acoustic panels an economic solution
to control unwanted noise at the source. This highly effective and flexible panel system can be customized to
suit almost any application.

Rectangular Elbow Silencers are designed to provide a solution to undesirable noise in short runs of ductwork,
with the additional benefit of improved mid frequency insertion loss, provided by the 90° bend.

Designed to provide solutions for noise control applications where fibrous acoustic material is not permitted in
the air stream, packless circular silencers feature optimally tuned resonator chambers to provide high levels of
insertion loss.

Packless circular elbow silencers provide a unique solution for noise control applications with round duct, where
fibrous acoustic material is not permitted in the air stream, and where a 90° elbow is necessary due to space
constraints.

The Rectangular Elbow Silencer Packless (PERM) provides a unique solution for noise control applications where
fibrous acoustic material is not permitted in the air stream, and where a 90° elbow is necessary due to space
constraints.

Lightweight and easy to install, this innovative product provides an economical solution for return air noise and
improved speech privacy. Positioned directly above return grilles, the RAC prevents the transfer of occupant
noise into the plenum above and prevents mechanical noise in the plenum from flanking through return grilles,
or open vents, into the occupied space below.

Cross talk silencers allow air transfer between adjacent areas while providing the necessary attenuation to maintain
the sound transmission class (STC) rating of the partition. The Cross talk silencers come lined with acoustic
media and provide excellent noise reduction, while the design minimizes pressure drop and generated noise.

Sound Transmission Class (STC) rated silencers meet specific
noise requirements for acoustically sensitive applications.
Price STC silencers provide STC 40, 45, 50, and 55 ratings
and include as required, a high transmission loss casing to
reduce noise flanking through the sides of the silencer.

Acoustical louvers are an attractive way to provide ventilation as well as sound attenuation. The aerodynamically
designed internal geometry allows air to flow through with minimal pressure drop and maximum sound attenuation.
Acoustic louvers are available in a variety of sizes and finishes allowing this product to be used in any application
and meet architectural requirements

Circular silencers provide a practical, engineered solution for controlling duct noise in systems with round
ductwork. The round shape eliminates the need for costly transitions and the associated turbulence and system
pressure drop. With high quality, leak-free construction and many optional features, the CS silencer is suitable
for most applications.

Circular silencers provide a practical, engineered solution for controlling duct noise in systems with round
ductwork. The round shape eliminates the need for costly transitions and the associated turbulence and system
pressure drop. With high quality, leak-free construction and many optional features, the CS silencer is suitable
for most applications.

The compact design of the Return Air Silencer (RAS) provides an innovative solution for reducing plenum noise
entering occupied spaces through return air openings and mechanical equipment noise transmission through
transfer grilles.

The compact design of the Return Air Silencer (RAS) provides an innovative solution for reducing plenum noise
entering occupied spaces through return air openings and mechanical equipment noise transmission through
transfer grilles.

Rectangular silencers are designed to reduce noise in rectangular ductwork while minimizing system pressure
drop. The simple design, relatively low cost, and high level of performance flexibility make rectangular silencers
a reliable and cost-effective choice. A wide range of design and performance options allow rectangular silencers
to be easily integrated into any HVAC system.

Rectangular silencers are designed to reduce noise in rectangular ductwork while minimizing system pressure
drop. The simple design, relatively low cost, and high level of performance flexibility make rectangular silencers
a reliable and cost-effective choice. A wide range of design and performance options allow rectangular silencers
to be easily integrated into any HVAC system.

Designed to provide solutions for noise control applications where fibrous acoustic material is not permitted in
the air stream RSP packless silencers are designed to provide maximum attenuation without the use of acoustic
media.

Designed to provide solutions for noise control applications where fibrous acoustic material is not permitted in
the air stream RSP packless silencers are designed to provide maximum attenuation without the use of acoustic
media.

The Modular Radiant Panel (RPM) is designed to provide radiant heating and/or cooling in exposed standard or
tegular suspended ceiling system applications. The RPM can also be recessed or flush mounted on a drywall ceiling.

Security bar grilles restrict access and allow airflow between secure and non-secured areas. Ideal for maximum
security applications, security bar grilles feature all-welded construction and are mounted to the wall using a welded
frame with optional mounting flanges. Maximum security bar grilles are available in three main configurations:
standard, double ribbed and tool-resistant.

Security bar grilles restrict access and allow airflow between secure and non-secured areas. Ideal for maximum
security applications, security bar grilles feature all-welded construction and are mounted to the wall using a welded
frame with optional mounting flanges. Maximum security bar grilles are available in three main configurations:
standard, double ribbed and tool-resistant.

Lattice and perforated security grilles reduce the risk of damage and disassembly associated with traditional
grilles in secure areas. With minimum and maximum security options as well as a variety of mounting types, these
grilles are suitable for supply and return applications.

Lattice and perforated security grilles reduce the risk of damage and disassembly associated with traditional
grilles in secure areas. With minimum and maximum security options as well as a variety of mounting types, these
grilles are suitable for supply and return applications.

Linear security grilles provide a safe alternative to traditional slot diffusers in spaces that require a high level of
security. They come standard with a risk-resistant perforated face, that is available in one-way and two-way airflow
patterns. Integral engineered plenums can be provided to ensure performance of the linear grille is achieved.

All risk resistant grilles feature heavy-duty, all-welded construction and thread resistant cores, ideal for high
security applications. Multiple core and mounting options allow flexibility for various installations.

The Medium Security Screen Grille (MSSG) features all-welded construction with 10 GA, 3/8 in. x 3/8 in. wire
mesh secured to a 10 GA steel frame. Multiple construction options allow the MSSG to be customized to meet
installation requirements.

Louvered security grilles features all-welded construction with a heavy-gauge wire screen fixed behind the louver
blades for additional security.

Security bar grilles restrict access and allow airflow between secure and non-secured areas. Ideal for maximum
security applications, security bar grilles feature all-welded construction and are mounted to the wall using a welded
frame with optional mounting flanges. Maximum security bar grilles are available in three main configurations:
standard, double ribbed and tool-resistant.

Linear security grilles provide a safe alternative to traditional slot diffusers in spaces that require a high level of
security. they come standard with a risk-resistant perforated face, that is available in one-way and two-way airflow
patterns. integral engineered plenums can be provided to ensure performance of the linear grille is achieved.

All risk resistant grilles feature heavy-duty, all-welded construction and thread resistant cores, ideal for high
security applications. Multiple core and mounting options allow flexibility for various installations

All risk resistant grilles feature heavy-duty, all-welded construction and thread resistant cores, ideal for high
security applications. Multiple core and mounting options allow flexibility for various installations

Lattice and perforated security grilles reduce the risk of damage and disassembly associated with traditional
grilles in secure areas. With minimum and maximum security options as well as a variety of mounting types, these
grilles are suitable for supply and return applications.

Louvered security grilles features all-welded construction with a heavy-gauge wire screen fixed behind the louver
blades for additional security.d

Indoor air quality is one of the most important aspects of a building. The air distribution systems in most commercial
spaces are designed with cost and energy efficiency in mind, which results in reduced minimum airflows and
lower than optimal indoor air quality. Renovating existing HVAC systems to improve indoor air quality can be
expensive and time consuming. Indoor air quality can instead be improved with the use of a room side air purifier.

Typically, hydronic control piping packages are assembled piece by piece in the field and mounted to terminal units
on the jobsite. By allocating the piping package mounting to the terminal unit manufacturer, engineers, contractors,
and building owners can take advantage of factory lean manufacturing and quality assurance procedures to
allow for quality improvements and time savings on the jobsite. Factory mounted piping packages can save up
to 2-3 hours of field labor for every assembly leading to impactful time and cost savings for any size of project

Indoor air quality is one of the most important aspects of a building and can be improved in three ways: dilution,
filtration, and ventilation. Renovating existing HAVC systems to improve indoor air quality can be expensive and
time consuming. Indoor air quality can be improved without renovations to existing systems with the use of a
room side air purifier.

Filters are available for enhanced filtration of
recirculated air. The MERV 3 throw away filter can be
used on any fan powered terminal. The MERV 8 filter
requires filter boots and EC motors to overcome the
additional pressure drop.

The SDV-Vantage presents an innovative change to VAV boxes in systems with condensing boilers and heat
pumps, with a major impact on operating cost and hydronic efficiency. Lower entering water temperatures are
combined with application-specific coils to increase the water-to-air heat transfer. Additionally, the repositioned
damper coupled with the upstream airflow measurement sensor provides an improvement of airflow across the
coil, increasing heat transfer, reducing fluid flow requirements and downstream temperature stratification, while
maintaining the functionality of a commodity single duct VAV.

Filters are available for enhanced filtration of
recirculated air. The MERV 3 throw away filter can be
used on any fan powered terminal. The MERV 8 filter
requires filter boots and EC motors to overcome the
additional pressure drop.

In today’s world, indoor air quality is an increasing concern and the ability to provide clean air to room occupants is
more important than ever. Air distribution systems in most commercial spaces are primarily designed with cost and
thermal comfort in mind, which results in minimized ventilation airflows and lower than optimal indoor air quality.
The Overhead Air Purifier (OAP) is an ideal option for improving indoor air quality in high density areas like office
spaces, classrooms, fitness centers, retail, and restaurants. It is designed to continuously cycle air through an
air filter, eliminating unwanted airborne particulates.

The FDV is engineered to be one of the quietest parallel fan powered terminal units on the market. The typical
application of the FDV relies on the primary air to meet the cooling demand, similar to a single duct terminal unit.
When the controls call for heating, the primary air turns down to its minimum setting, and the fan comes on to
pull air from the plenum, mixing it with the primary airflow. The recirculating fan airflow is typically sized at 50%
of the maximum primary air valve demand and not operated during cooling mode, though continuous blending
applications have gained popularity in certain markets

Filters are available for enhanced filtration of
recirculated air. The MERV 3 throw away filter can be
used on any fan powered terminal. The MERV 8 filter
requires filter boots and EC motors to overcome the
additional pressure drop.

Typically, hydronic control piping packages are assembled piece by piece in the field and mounted to terminal units
on the jobsite. By allocating the piping package mounting to the terminal unit manufacturer, engineers, contractors,
and building owners can take advantage of factory lean manufacturing and quality assurance procedures to
allow for quality improvements and time savings on the jobsite. Factory mounted piping packages can save up
to 2-3 hours of field labor for every assembly leading to impactful time and cost savings for any size of project.

Filters are available for enhanced filtration of
recirculated air. The MERV 3 throw away filter can be
used on any fan powered terminal. The MERV 8 filter
requires filter boots and EC motors to overcome the
additional pressure drop.

Price factory-mounted water coils are designed specifically to suit Price terminals units. Price’s water coils have
a staggered copper tubing arrangement combined with aluminum fins that have an optimized profile to provide
effective and economical heat transfer. Price water coils are certified to AHRI 410.

The Price FDCLP2 fan powered constant volume terminal units are an excellent solution for air volume control in
restricted ceiling spaces, with unit heights as low as 8 5/8 in. The FDCLP2 provides constant air volume delivery
to the occupied zone in response to a control signal. A variety of options and accessories, including a sensible
cooling coil, are available to meet specific job requirements.

The LDV laboratory grade exhaust valve features fully welded, 316 stainless steel construction to withstand
airborne contaminants and corrosives in the most demanding applications.

Price SDE single duct exhaust terminal units are designed to control airflow on the return/exhaust side of an air
distributor system. The SDE uses the same primary air valve assembly as the supply terminal unit but includes
an integral attenuator on the inlet side to prevent airflow generated sound from entering the occupied space.

With minimal pressure drop and low sound levels, the SDV controls the volume of conditioned air into an
occupied space in response to a thermostat control signal. Incorporation of an airflow sensor allows the SDV
to compensate instantly for any change in supply air pressure that might alter the supply volume, resulting in a
pressure independent variable air volume system.

Con la mínima caída de presión y niveles de sonido bajos, la SDV controla el volumen de aire acondicionado en
un espacio ocupado en respuesta a una señal de control de un termostato. La incorporación de un sensor de
caudal de aire permite que la SDV compense de manera instantánea cualquier cambio en la presión de aire de
suministro que pudiese alterar el volumen de suministro generando un sistema de volumen de aire independiente
de la presión.

The Price FDCLP2 fan powered constant volume terminal units are an excellent solution for air volume control in
restricted ceiling spaces, with unit heights as low as 8 5/8 in. The FDCLP2 provides constant air volume delivery
to the occupied zone in response to a control signal. A variety of options and accessories, including a sensible
cooling coil, are available to meet specific job requirements.

The Price LGB low pressure gate bypass terminal unit provides complete zoning flexibility from a single zone
source. The LGB complements packaged rooftop and low pressure central station units by providing excellent
temperature control and central air distribution with unlimited zoning. The added costs of multi-zone systems
can be avoided, and the need for duct-mounted heating coils can be minimized.

Price SRDV retrofit terminal units are designed for installation in
rectangular ductwork to easily convert a constant volume system
into a variable air volume (VAV) system. To install the SRDV and
convert the system to variable air volume, simply cut a rectangular
hole in the existing ductwork and slide in the SRDV retrofit terminal
unit. The unit can then be fastened to the duct with a heavy gauge
mounting plate and steel mounting angles.

Price Dual Duct terminal units precisely regulate the flow of conditioned air to a room or zone in response to
thermostat demand for cooling or heating. Different levels of mixing performance are available, plus a range of
design options to suit a wide variety of specification requirements.

Price Dual Duct terminal units precisely regulate the flow of conditioned air to a room or zone in response to
thermostat demand for cooling or heating. Different levels of mixing performance are available, plus a range of
design options to suit a wide variety of specification requirements.

The Price FDC-DOAS series fan powered terminal unit with a sensible cooling coil is an excellent solution for
imparting large sensible loads on the zone when a Dedicated Outdoor Air System is utilized. With unit heights
between 15 1/4” and 20 1/8”, and airflow ranges between 100 and 2400 CFM, the FDC-DOAS proves to be an
excellent solution for air volume control in restricted ceiling spaces and rooms of any size with variable occupancy.
The FDC-DOAS provides ventilation air, and total air volume independently of one another in response to different
control signals. A variety of options and accessories, including electric reheat, hot water reheat, and factory
mounted valve packages, are available to meet specific job requirements.

The FDC, series flow, fan powered terminal unit, is designed to supply air volume to the occupied zone in response
to a control signal.

The RDV air volume control valve is used to control supply or exhaust air in VAV applications. The leak-resistant
casing is fabricated with 22 gauge galvanized steel and is mechanically fastened. Stainless steel construction is
available when corrosives and contaminants are present in the airstream.

Electric reheat coils are available for single duct and fan powered terminal units. These factory mounted electric
coils are ETL listed to meet electrical safety standards, and comply with dual designation CSA 236/UL 1995.
Standalone coils supplied as duct heaters are certified in compliance with UL 1996.

Electric reheat coils are available for single duct and fan powered terminal units. These factory mounted electric
coils are ETL listed to meet electrical safety standards, and comply with dual designation CSA 236/UL 1995.
Standalone coils supplied as duct heaters are certified in compliance with UL 1996.

The FDC, series flow, fan powered terminal unit, is designed to supply air volume to the occupied zone in response
to a control signal.

The Linear Fan Terminal (LFT) is a perimeter linear plenum with an integral fan to provide forced air through cooling
or heating coils. With its low profile design the unit can be installed in slab applications as well as raised access
floor plenums with minimal height clearances required.

The Linear Floor Grille (LFG) series consists of strong, durable floor grilles that are specifically designed for underfloor
applications. These grilles can be used in conjunction with various Price underfloor plenums and terminal units.
The LFG series has been designed as efficient air supply product for use in air distribution systems utilizing
raised floor and trench designs

The Linear Natural Convection Terminal (LNT) provides warm air by recirculating room air down through the
integrated heating coil. Optional air valves allow for cooling through the same terminal in pressurized raised
access floor applications. This uniquely compact design allows for quick drop-in installation and is ideal for
perimeter applications. The air valve design allows for it to modulate within the plenum housing, removing the
need for extra coordination of the floor pedestal locations. These units are finished with a separate heavy duty
Linear Floor Grille (LFG), available in both flanged and flangeless styles.

The Power and Control Module (PCM) is a consolidated power and control enclosure for underfloor applications,
integrating seamlessly with all Price underfloor devices. The PCM is equipped with an integral transformer for
powering zone controllers, diffusers and terminals. The PCM allows for simple plug-and-play connections, with
power and control being delivered via a single cable.

The Roll-Up Floor Grille (RFG) is a strong, durable floor grille that is specifically designed for underfloor applications.
This grille can be used in conjunction with various Price underfloor plenums and terminal units.
The RFG is designed as an efficient air supply product which maximizes free area while maintaining superior
strength. The bars are held together with corrosion resistant springs and lay perpendicular to the long dimension
allowing for an easy drop in installation.

The Underfloor Blank Off (UFB) can be used to create a continuous-grille look with underfloor plenums and
terminals such as the Linear Floor Plenum (LFP), Linear Plenum Terminal (LPT), and Linear Natural Convection
Terminal (LNT). Quickly removable endcaps on the plenums and terminals make installation of the UFB very
simple. The UFB can be used in flanged and flangeless applications, and can be ordered with pedestal brackets.

The Linear Fan Terminal - Electric coil (LFT-EC) is a perimeter linear plenum with an integral fan to provide forced
air through electric heating coils. With its low profile design the unit can be installed in slab applications as well
as raised access floor plenums with minimal height clearances required.

The Underfloor Deflection Grille (DGU) serves as a supply diffuser for underfloor air channels. The DGU will evenly
disperse air from high velocity ductwork into the underfloor plenum, ensuring an even pressure and temperature
distribution. Directional vanes and a patented blade indexing device lock each blade into position to prevent
unwanted changes in blade deflection.

The Underfloor Deflection Grille (DGU) serves as a supply diffuser for underfloor air channels. The DGU will evenly
disperse air from high velocity ductwork into the underfloor plenum, ensuring an even pressure and temperature
distribution. Directional vanes and a patented blade indexing device lock each blade into position to prevent
unwanted changes in blade deflection.

The Underfloor Terminal Unit (FDU) is available in various sizes and configurations in order to meet any application need.
In cooling mode, plenum air is pulled through the fan and delivered to the perimeter to meet envelope loads. In
heating mode, hot water or electric reheat coils can be used to warm the air up to meet heating demand.

The Linear Floor Grille (LFG) series consists of strong, durable floor grilles that are specifically designed for underfloor
applications. These grilles can be used in conjunction with various Price underfloor plenums and terminal units.

The Linear Floor Heater (LFH) is a premium linear floor terminal with integrated heat, designed for raised floor
applications and ideal for perimeter ventilation. Using the LFH allows for conditioning of the perimeter zone
without the use of an underfloor fan terminal

The High Capacity Heating/Cooling Terminal (LCT) is a perimeter linear terminal with an integrated heating and
cooling water coil designed for raised floor applications. Using the LCT allows for conditioning of the perimeter
zone without the use of an underfloor fan terminal.

The Modular Floor Diffuser (MFD) is available in both a displacement pattern and a twist pattern. Manual adjustable
baskets are typical, while several other basket styles are available.
The Price modular floor diffusers have been designed as an efficient air supply for use in air distribution systems
utilizing a raised floor design.

The Linear Displacement Floor Grille (DFGL) is a floor mounted linear displacement grille that supplies low velocity
discharge air from an underfloor plenum or a ducted supply into the occupied zone. The DFGL is best suited
for linear perimeter applications and is typically used in raised floors, floor cavities or on the top of sills. The low
noise levels combined with the sleek look of the diffuser make it suitable for office spaces, places of worship,
galleries, schools or any application requiring a comfortable, quiet space

The Linear Fan Terminal (LFT) is a perimeter linear plenum with an integral fan to provide forced air through cooling
or heating coils. With its low profile design the unit can be installed in slab applications as well as raised access
floor plenums with minimal height clearances required

The Modular Floor Diffuser (MFD) is available in both a displacement pattern and a twist pattern. Manual adjustable
baskets are typical, while several other basket styles are available.

The LFP is used alongside an
underfloor fan terminal to provide
conditioned air to perimeter zones
via a ducted inlet. The LFP can be
configured for both continuous and
discrete applications using removable
end-caps. These plenum’s are perfect
for applications with high perimeter
loads in either heating or cooling.
These can include long runs of
glass in offices, lobbies, schools and
universities with raised floor systems.

The Linear Fan Terminal - Electric coil (LFT-EC) is a perimeter linear plenum with an integral fan to provide forced
air through electric heating coils. With its low profile design the unit can be installed in slab applications as well
as raised access floor plenums with minimal height clearances required.

The Linear Natural Convection Terminal (LNT) provides warm air by recirculating room air down through the
integrated heating coil. Optional air valves allow for cooling through the same terminal in pressurized raised
access floor applications. This uniquely compact design allows for quick drop-in installation and is ideal for
perimeter applications. The air valve design allows for it to modulate within the plenum housing, removing the
need for extra coordination of the floor pedestal locations. These units are finished with a separate heavy duty
Linear Floor Grille (LFG), available in both flanged and flangeless styles

The Modular Floor Diffuser (MFD) is available in both a displacement pattern and a twist pattern. Manual adjustable
baskets are typical, while several other basket styles are available.
The Price modular floor diffusers have been designed as an efficient air supply for use in air distribution systems
utilizing a raised floor design.
A number of different accessories and mounting options are available to suit a wide range of applications

The Power and Control Module (PCM) is a consolidated power and control enclosure for underfloor applications,
integrating seamlessly with all Price underfloor devices. The PCM is equipped with an integral transformer for
powering zone controllers, diffusers and terminals. The PCM allows for simple plug-and-play connections, with
power and control being delivered via a single cable

The PFC is available in various sizes
and configurations in order to meet
any application need. The unit’s
compact design makes it suitable for
any office space looking to minimize
the mechanical room foot print and
maximize usable floor space. It provides
localized air handling and can also
help reduce the air shaft size down
to fresh air only. The PFC is an ideal
solution for millennial spaces seeking
flexibility and optimal space utilization

The Linear Plenum Terminal (LPT-HC and LPT-VC) is designed for a raised floor system requiring perimeter
conditioning cooling, or both heating and cooling. The LPT is suitable for light foot traffic when used in conjunction
with the Linear floor Grille (LFG) - heavy duty construction. The LPT-VC plenum comes equipped with a VAV
damper for modulating cooling airflow from an underfloor plenum. The LPT-HC option combines the VAV damper
for cooling via an underfloor plenum with a ducted inlet for heating via an underfloor fan box (FDU)

The Price RPN provides a means for measuring the
relative pressure between the pressurized underfloor
plenum and the room. The RPN is designed to fit
inside any style of mounting ring underneath any
8 in. Price modular floor diffuser. The advantage
to the RPN is that it maintains a uniform look with
other Price underfloor diffusers. Its ability to be hidden
and yet maintain less than 1% error in its pressure
measurements makes the RPN a very useful product
for UFAD applications with plenum pressure control.
The RPN comes with an integral pressure transducer
that is highly accurate at the very low static pressures
normally present in pressurized underfloor plenums

The Retrofit Floor Module is a VAV plenum used for replacing older style air devices used in existing underfloor
air systems.
The unit is designed as a drop-in solution that can come equipped with various actuator types, a duct inlet, and
Price circuit board for integrating into the Price Moduflex system. It can also be selected to have Molex connectors
or a terminal block to allow for easy integration with existing control systems and wiring.

The Roll-Up Floor Grille (RFG) is a strong, durable floor grille that is specifically designed for underfloor applications.
This grille can be used in conjunction with various price underfloor plenums and terminal units.
The RFG is designed as an efficient air supply product which maximizes free area while maintaining superior
strength. The bars are held together with corrosion resistant springs and lay perpendicular to the long dimension
allowing for an easy drop in installation

The Underfloor Blank Off (UFB) can be used to create a continuous-grille look with underfloor plenums and
terminals such as the Linear Floor Plenum (LFP), Linear Plenum Terminal (LPT), and Linear Natural Convection
Terminal (LNT). Quickly removable endcaps on the plenums and terminals make installation of the UFB very
simple. The UFB can be used in flanged and flangeless applications, and can be ordered with pedestal brackets

The Modular Floor Boot (MFB) is a premium quality boot designed for ducted raised floor applications or to reduce
transmission of noise through the plenum. These boots are used in conjunction with Modular Floor Diffusers (MFD)

The Pressure Controlled Damper (PCV) is a device that controls pressure within a ducted system. The PCV can be setup for
bypass control or for zone control.

The Varitherm series of self-modulating diffusers provide optimal thermal comfort through integrated thermal
sensors that continuously monitor room temperature to modulate the integrated damper. Damper modulation
is done mechanically with a thermally powered wax actuator, eliminating the need for any electrical or controls
wiring and making installation quick and easy.

The Varitherm series of self-modulating diffusers provide optimal thermal comfort through integrated thermal
sensors that continuously monitor room temperature to modulate the integrated damper. Damper modulation
is done mechanically with a thermally powered wax actuator, eliminating the need for any electrical or controls
wiring and making installation quick and easy

The Varitherm series of self-modulating diffusers provide optimal thermal comfort through integrated thermal
sensors that continuously monitor room temperature to modulate the integrated damper. Damper modulation
is done mechanically with a thermally powered wax actuator, eliminating the need for any electrical or controls
wiring and making installation quick and easy

The Varitherm series of self-modulating diffusers provide optimal thermal comfort through integrated thermal
sensors that continuously monitor room temperature to modulate the integrated damper. Damper modulation
is done mechanically with a thermally powered wax actuator, eliminating the need for any electrical or controls
wiring and making installation quick and easy.

The Prodigy series of diffusers enhance traditional system design by adding the element of personal control. A
room temperature sensor provides constant feedback to the microprocessor controller located in the diffuser,
enabling precise monitoring of the space temperature. Using the room, duct and setpoint temperatures, the
Prodigy modulates supply air to maintain comfort in the space.

El Prodigy mejora el diseño tradicional del sistema agregando el elemento de control personal. Un sensor de
temperatura ambiente entrega retroalimentación constante al controlador microprocesador ubicado en el difusor lo
que permite un monitoreo preciso de la temperatura del espacio. Utilizando las temperaturas ambiente, del ducto
y del punto de operación, el Prodigy modula el aire de suministro para mantener la comodidad en el espacio.

The Prodigy series of diffusers enhance traditional system design by adding the element of personal control. A
room temperature sensor provides constant feedback to the microprocessor controller located in the diffuser,
enabling precise monitoring of the space temperature. Using the room, duct and setpoint temperatures, the
Prodigy modulates supply air to maintain comfort in the space.

El Prodigy mejora el diseño tradicional del sistema agregando el elemento de control personal. Un sensor de
temperatura ambiente entrega retroalimentación constante al controlador microprocesador ubicado en el difusor lo
que permite un monitoreo preciso de la temperatura del espacio. Utilizando las temperaturas ambiente, del ducto
y del punto de operación, el Prodigy modula el aire de suministro para mantener la comodidad en el espacio.

Filters are available for enhanced filtration of
recirculated air. The MERV 3 throw away filter can be
used on any fan powered terminal. The MERV 8 filter
requires filter boots and EC motors to overcome the
additional pressure drop.

El difusor de auto modulación Varitherm entrega una comodidad térmica óptima a través de los sensores térmicos
integrados que monitorean continuamente la temperatura ambiente para modular el regulador de tiro integrado.
La modulación del regulador de tiro se hace mecánicamente con un actuador de cera accionado térmicamente,
lo que elimina la necesidad de cualquier cableado eléctrico o de controles y hace que la instalación sea rápida
y fácil.

The Varitherm series of self-modulating diffusers provide optimal thermal comfort through integrated thermal
sensors that continuously monitor room temperature to modulate the integrated damper. Damper modulation
is done mechanically with a thermally powered wax actuator, eliminating the need for any electrical or controls
wiring and making installation quick and easy.
